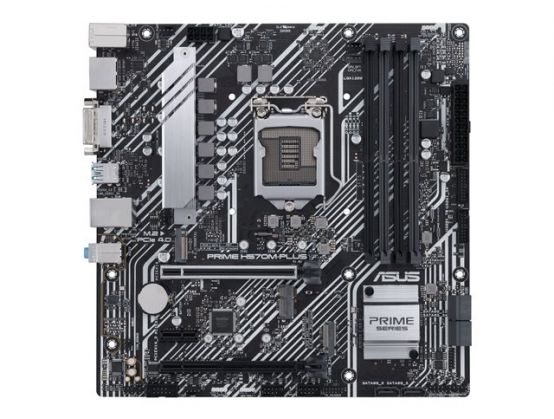

ASUS PRIME H570M-PLUS - motherboard - micro ATX - LGA1200 Socket - H570

Name: ASUS PRIME H570M-PLUS - motherboard - micro ATX - LGA1200 Socket - H570
Brand: ASUS
SKU: 1TCPTMOT-003566
Price: 128.95 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003566

Manufacture#: PRIME H570M-PLUS

Be the first to review this product

£107.46

£128.95 inc VAT

Checking delivery…

Product details

Motherboard
micro ATX
LGA1200 Socket
H570 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

ASUS PRIME H570M-PLUS
Motherboard
micro ATX
LGA1200 Socket
H570 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASUS PRIME H570M-PLUS - motherboard - micro ATX - LGA1200 Socket - H570

Enhanced power solution
Comprehensive cooling
ASUS OptiMem
Ultrafast connectivity

Enhanced power solution 8 power stages, alloy chokes and durable capacitors for stable power delivery. Comprehensive cooling VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. ASUS OptiMem Careful routing of traces and vias to preserve signal integrity for improved memory stability. Ultrafast connectivity PCIe 4.0, Dual M.2, Intel 1 Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt 4 header support.

Specification

Product Description ASUS PRIME H570M-PLUS - motherboard - micro ATX - LGA1200 Socket - H570

Product Type Motherboard - micro ATX

Chipset Type Intel H570

Processor Socket 1 x LGA1200 Socket

Compatible Processors (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports 6 x SATA-600, 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel H570

Processor Socket LGA1200 Socket

Max Processors Qty 1

Compatible Processors (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3200 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC897

Compliant Standards High Definition Audio

LAN

Network Controller Intel I219V

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2

RAID Features Intel Rapid Storage Technology

Interfaces 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DVI-D

Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS, ASUS EZ Flash 3

Sleep / Wake Up Wake on LAN (WOL), wake on PME

Hardware Features Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ASUS SafeSlot Core+

Miscellaneous

Included Accessories I/O back plate, 2 x M.2 screws

Cables Included 2 x Serial ATA cable

Software Included Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (Trial)

Width 24.4 cm

Depth 24.4 cm
