ASUS

PRIME Z370-A II S1151V2 Z370 ATX GLN+U3.1+M2 SATA 6GB/S DDR4

Name: PRIME Z370-A II S1151V2 Z370 ATX GLN+U3.1+M2 SATA 6GB/S DDR4
Brand: ASUS
SKU: 1TCPTMOT-004033
Price: 136.22 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004033

Manufacture#: PRIME Z370-A II

Be the first to review this product

£113.52

£136.22 inc VAT

Checking delivery…

Product details

Motherboard
ATX
LGA1151 Socket
Z370 Chipset

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

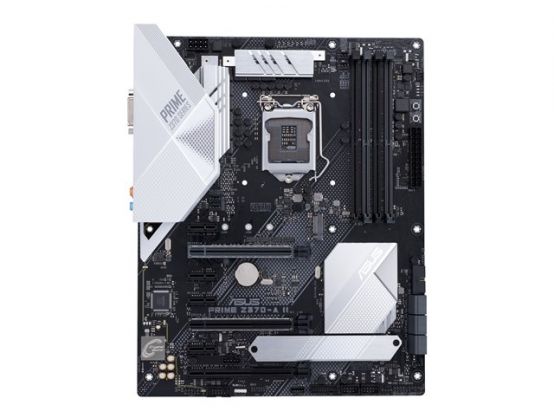

ASUS PRIME Z370-A II
Motherboard
ATX
LGA1151 Socket
Z370 Chipset
USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

ASUS Prime Z370 Series motherboards provide the solid foundation needed for your first build, plus loads of scope to grow with your ambitions. You will benefit from advanced technologies - including automated system tuning, comprehensive cooling controls, immersive onboard audio, and support for the ASUS Fan Extension Card. Build smart and easy with ASUS Prime Z370.

Specification

Product Description ASUS PRIME Z370-A II - motherboard - ATX - LGA1151 Socket - Z370

Product Type Motherboard - ATX

Chipset Type Intel Z370

Processor Socket 1 x LGA1151 Socket

Compatible Processors Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7)

Max RAM Size 64 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, unbuffered

Storage Ports 6 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (4 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)

Max Allocated RAM Size 1 GB

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - ATX

Chipset Type Intel Z370

Processor Socket LGA1151 Socket

Max Processors Qty 1

Compatible Processors Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7)

Supported RAM

Max Size 64 GB

Technology DDR4

Bus Clock 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Graphics

Max Allocated RAM Size 1 GB

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALCS1220A

Compliant Standards High Definition Audio, DTS Headphone:X

LAN

Network Controller Intel I219V

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16, x8/x8, x8/x4+x4, x8+x4+x4/x0 modes) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 4 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe -connectors: 1 x M.2

RAID Features Intel Rapid Storage Technology

Interfaces 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x DVI-D ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x DisplayPort ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2

Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS O.C. Profile, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support, DMI 3.1 support

Sleep / Wake Up Wake on LAN (WOL), wake on PME

Hardware Features C.P.R. (CPU Parameter Recall), jack retasking, MemOK!, ASUS Q-Design, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Smart Response Technology, Fanless Design Heatsink, AMD 3-way CrossFireX technology support, ASUS DIGI+ Power Control, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, Turbo LAN, Dual Intelligent Processors 5, LANGuard, Memory O.C. Design, ASUS Overvoltage Protection, ASUS Crystal Sound 3, ASUS PRO Clock Technology, AURA RGB Lighting Control, ASUS Fan Xpert 4, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core

Miscellaneous

Included Accessories I/O back plate, 1 x M.2 screw, ASUS fan holder

Cables Included 3 x Serial ATA cable ¦ 1 x SLI bridge

Software Included Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, PC Cleaner

Compliant Standards Plug and Play

Width 30.5 cm

Depth 24.4 cm
