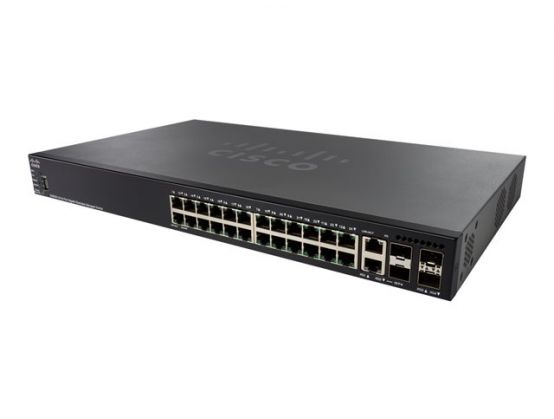

Name: Cisco 550X Series SG550X-24 - switch - 24 ports - Managed - rack-mountable
Brand: CISCO
SKU: 1TSOFLSO-059340
Price: 1966.26 GBP
Availability: OutOfStock

Overview

Main features

Cisco 550X Series SG550X-24
Switch
L3
Managed
24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
rack-mountable

Overview

The Cisco SG550X-24-K9-EU Switch is a next-generation stackable managed Ethernet switch that provides the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price.¦This switch incorporates a fan and power hardware redundancy, increasing overall network availability.

Affordable 10 Gigabit Ethernet
Superior reliability and resiliency
Energy efficiency

ETHERNET PORT CONFIGURATION 24-port 10/100/1000, 4 x 10G uplinks (SFP+) CONFIGURATION & CONTROL Stackable (8 units), on-box WebUI, CLI, SNMP, Cisco FindIT Network Manager, PnP, Auto Smartports, auto-discovery, zero-touch deployment L2+/L3 FEATURES Static routing, QoS, Voice/Guest VLAN, GVRP, MSTP, IGMP Snooping, Time-based Access Control Lists L2+/L3 FEATURES Dynamic routing, RIP, VRRP, Policy-based Routing, IGMP querier, Time-based Access Control Lists, 802.1x, Web-based Authentication, IPv6 First Hop Security, Dynamic ARP Inspection PEACE OF MIND Limited-lifetime warranty, next-business-day replacement, one-year technical support, and free software fixes for the term of the warranty

Specification

Product Description Cisco 550X Series SG550X-24 - switch - 24 ports - Managed - rack-mountable

Device Type Switch - 24 ports - L3 - Managed - stackable

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)

Performance Forwarding performance (64-byte packet size): 95.23 Mpps ¦ Switching capacity: 128 Gbps

Capacity VLANs supported: 4094 ¦ QoS hardware queues: 8 ¦ IPv4 routes (static): 7000 ¦ IPv6 routes (static): 7000 ¦ ACL rules: 3000 ¦ IP router interfaces: 256

MAC Address Table Size 16K entries

Jumbo Frame Support 9000 bytes

Routing Protocol RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR

Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP

Features Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, DAI, reset button, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet, MIB, MVR, GARP, GVRP, DoS, 802.1x authentication, ToS, DSCP support, 1.5MB packet buffer, IP source guard, BPDU, ICMP

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az

Power AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) 44 cm x 25.7 cm x 4.4 cm

Weight 3.27 kg

Localisation Europe

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 24 ports - L3 - Managed - stackable

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)

Performance Forwarding performance (64-byte packet size): 95.23 Mpps ¦ Switching capacity: 128 Gbps

Capacity VLANs supported: 4094 ¦ QoS hardware queues: 8 ¦ IPv4 routes (static): 7000 ¦ IPv6 routes (static): 7000 ¦ ACL rules: 3000 ¦ IP router interfaces: 256

MAC Address Table Size 16K entries

Jumbo Frame Support 9000 bytes

Max Units In A Stack 8

Routing Protocol RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR

Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP

Encryption Algorithm MD5, SSL

Authentication Method Secure Shell (SSH), RADIUS, TACACS+

Features Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, DAI, reset button, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet, MIB, MVR, GARP, GVRP, DoS, 802.1x authentication, ToS, DSCP support, 1.5MB packet buffer, IP source guard, BPDU, ICMP

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az

Processor X ARM: 800 MHz

RAM 512 MB

Flash Memory 256 MB

Status Indicators Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink ¦ 2 x 10GBase-T RJ-45 uplink ¦ 1 x console RJ-45 ¦ 1 x USB Type A

Power

Power Device Internal power supply

Voltage Required AC 120/230 V (50/60 Hz)

Power Consumption Operational 33.5 Watt

Miscellaneous

Cables Included 1 x serial cable

Rack Mounting Kit Included

MTBF 375,790 hours

Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2

Localisation Europe

Dimensions & Weight

Width 44 cm

Depth 25.7 cm

Height 4.4 cm

Weight 3.27 kg

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1 year ¦ Technical support - web support - 1 year

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 10 - 90% (non-condensing)

Min Storage Temperature -20 °C

Max Storage Temperature 70 °C

Humidity Range Storage 10 - 90% (non-condensing)
