Name: ESR6300 HARDWARE SPARE
Brand: CISCO
SKU: 1TNETRNE-010909
Price: 5796.24 GBP
Availability: OutOfStock

Overview

Main features

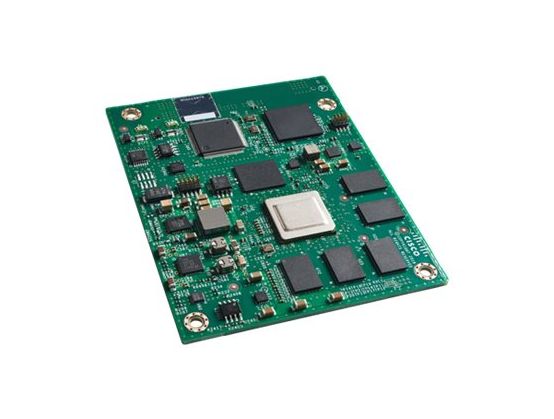

Cisco Embedded Services Router 6300 (no cooling plate)
Router 4-port switch
1GbE, PC/104
WAN ports: 2
plug-in module

Overview

Cisco 5900 Series Embedded Services Routers (ESRs) provide highly secure data, voice, and video communications to stationary and mobile network nodes across wired and wireless links. They solve critical size, weight, and power challenges, and can operate reliably in harsh environments.

Specification

Product Description Cisco Embedded Services Router 6300 (no cooling plate) - router - plug-in module

Device Type Router - 4-port switch (integrated)

Enclosure Type Plug-in module

WAN Ports Qty 2

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, PC/104

Data Transfer Rate 1 Gbps

Network / Transport Protocol L2TP, RSVP, IPSec, FTP, DHCP, DDNS, RTP, HTTP, HTTPs, IPv6, cRTP

Routing Protocol RIP-1, RIP-2, BGP, EIGRP, NHRP, OSPFv2, GRE, OSPFv3, static IPv6 routing, policy-based routing (PBR), STP, MGRE

Remote Management Protocol Telnet

Features NAT support, hardware encryption, DiffServ support, LLQ, CBWFQ, WFQ, ACL support, QoS, DMVPN, DHCP server, VRF-Lite, DNS proxy, DHCP relay, DHCP client, rugged, VRF, CoS, DSCP support, CoPP, failover protection, HQoS, CBTS, CBTP, CBWRED, DNS spoofing

Compliant Standards IEEE 802.1D

Dimensions (WxDxH) 9.5885 cm 7.62 cm

General

Device Type Router - 4-port switch (integrated)

Enclosure Type Plug-in module

Connectivity Technology Wired

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, PC/104

Data Transfer Rate 1 Gbps

Network / Transport Protocol L2TP, RSVP, IPSec, FTP, DHCP, DDNS, RTP, HTTP, HTTPs, IPv6, cRTP

Routing Protocol RIP-1, RIP-2, BGP, EIGRP, NHRP, OSPFv2, GRE, OSPFv3, static IPv6 routing, policy-based routing (PBR), STP, MGRE

Remote Management Protocol Telnet

Encryption Algorithm SSL, PKI, 256-bit AES, 512-bit SHA, 384-bit SHA

Features NAT support, hardware encryption, DiffServ support, LLQ, CBWFQ, WFQ, ACL support, QoS, DMVPN, DHCP server, VRF-Lite, DNS proxy, DHCP relay, DHCP client, rugged, VRF, CoS, DSCP support, CoPP, failover protection, HQoS, CBTS, CBTP, CBWRED, DNS spoofing

Compliant Standards IEEE 802.1D, CISPR 24, EN55024, FCC CFR47 Part 15, IEC 60950-1, WEEE, MIL-STD-810, MIL-STD-810F, CNS13438:2006, IEC 61850-3, EN 55024:2010, IEEE 1613, EN 300 386, KN35, EN 55032:2012, UL/CSA60950-1, IEC 62368-1, EN 55032:2015, CISPR 32:2012, UL 62368-1, TCVN 7317, CISPR 35, VCCI-CISPR 32:2016, CISPR 32:2015, EN 55035:2017, EN 61850-3, QCVN, CSA 62368-1, KN32:2015, IEC 68000-2-32

RAM 4 GB DDR4 SDRAM

Flash Memory 4 GB

Expansion / Connectivity

Interfaces WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Console: 1 x ¦ Serial: 1 x ¦ Storage: 1 x ¦ Alarm:

Power

Power Consumption Operational 12 Watt

Dimensions & Weight

Width 9.5885 cm

Height 7.62 cm

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 85 °C
