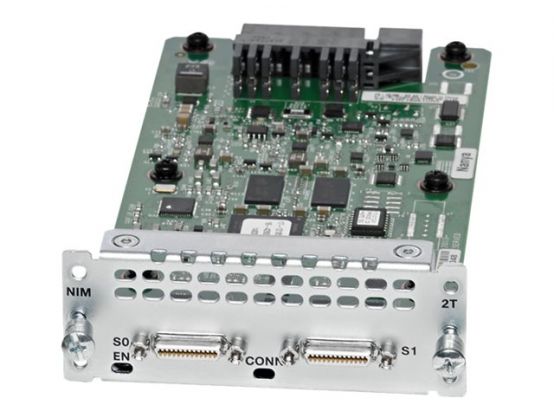

Cisco WAN Network Interface Module - serial adapter - RS-232/449/530/V.35/X.21 x 2

Name: Cisco WAN Network Interface Module - serial adapter - RS-232/449/530/V.35/X.21 x 2
Brand: CISCO
SKU: 1TNETRNE-007786
Price: 140.75 GBP
Availability: OutOfStock

SKU

1TNETRNE-007786

Manufacture#: NIM-2T-RF

Be the first to review this product

£117.29

£140.75 inc VAT

Order by 15:00 and receive your order on Tuesday 17 Jun

Product details

Serial adapter
RS-232/449/530/V.35/X.21 x 2
refurbished
for P/N: ISR4321-PM20, ISR4331-PM20, ISR4351-PM20, ISR4431-PM20, ISR4461-K9-CAP, ISR4461-PM20

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Cisco WAN Network Interface Module
Serial adapter
RS-232/449/530/V.35/X.21 x 2
refurbished
for P/N: ISR4321-PM20, ISR4331-PM20, ISR4351-PM20, ISR4431-PM20, ISR4461-K9-CAP, ISR4461-PM20

Overview

Cisco Gigabit Ethernet WAN Modules bring high-density Ethernet connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers.

Specification

Product Description Cisco WAN Network Interface Module - serial adapter - RS-232/449/530/V.35/X.21 x 2

Device Type Serial adapter

Form Factor Plug-in module

Ports RS-232/449/530/V.35/X.21 x 2

Dimensions (WxDxH) 8.89 cm x 18.39 cm x 3.18 cm

Data Link Protocol RS-232, RS-530, X.21, V.35, RS-449, RS-530A

Data Transfer Rate 8 Mbps

Pricing Type Refurbished

Designed For P/N: C1100TG-1N24P32A, C1100TG-1N32A, C1100TGX-1N24P32A, C1-CISCO4221/K9, ISR4221-SEC/K9, ISR4221X/K9, ISR4321-DNA, ISR4321-PM20, ISR4331-DC/K9, ISR4331-DNA, ISR4331-PM20, ISR4351-DNA, ISR4351-PM20, ISR4431-DNA, ISR4431-PM20, ISR4451-DNA, ISR4451-PM20, ISR4461/K9, ISR4461-K9-CAP, ISR4461-PM20

General

Device Type Serial adapter

Form Factor Plug-in module

Networking

Ports RS-232/449/530/V.35/X.21 x 2

Connectivity Technology Wired

Data Link Protocol RS-232, RS-530, X.21, V.35, RS-449, RS-530A

Data Transfer Rate 8 Mbps

Expansion / Connectivity

Interfaces 2 x RS-232/449/530/V.35/X.21

Miscellaneous

Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, VCCI Class A, CNS 13438, CAN/CSA-C22.2 No. 60950-1, EN 300386

Pricing Type Refurbished

Dimensions & Weight

Width 8.89 cm

Depth 18.39 cm

Height 3.18 cm

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% (non-condensing)

Compatibility Information

Designed For P/N: C1100TG-1N24P32A, C1100TG-1N32A, C1100TGX-1N24P32A, C1-CISCO4221/K9, C1-CISCO4321/K9, C1-CISCO4331/K9, C1-CISCO4351/K9, C1-CISCO4431/K9, C1-CISCO4451/K9, ISR4221/K9, ISR4221-SEC/K9, ISR4221X/K9, ISR4321/K9, ISR4321-AX/K9, ISR4321-AXV/K9, ISR4321-DNA, ISR4321-PM20, ISR4321-SEC/K9, ISR4321-V/K9, ISR4321-VSEC/K9, ISR4331/K9, ISR4331-AX/K9, ISR4331-AXV/K9, ISR4331-DC/K9, ISR4331-DNA, ISR4331-PM20, ISR4331-SEC/K9, ISR4331-V/K9, ISR4331-VSEC/K9, ISR4351/K9, ISR4351-AX/K9, ISR4351-AXV/K9, ISR4351-DNA, ISR4351-PM20, ISR4351-SEC/K9, ISR4351-V/K9, ISR4351-VSEC/K9, ISR4431/K9, ISR4431-AX/K9, ISR4431-AXV/K9, ISR4431-DNA, ISR4431-PM20, ISR4431-SEC/K9, ISR4431-V/K9, ISR4431-VSEC/K9, ISR4451-DNA, ISR4451-PM20, ISR4451-X/K9, ISR4451-X-AX/K9, ISR4451-X-AXV/K9, ISR4451-X-SEC/K9, ISR4451-X-V/K9, ISR4451-X-VSEC/K9, ISR4461/K9, ISR4461-K9-CAP, ISR4461-PM20
