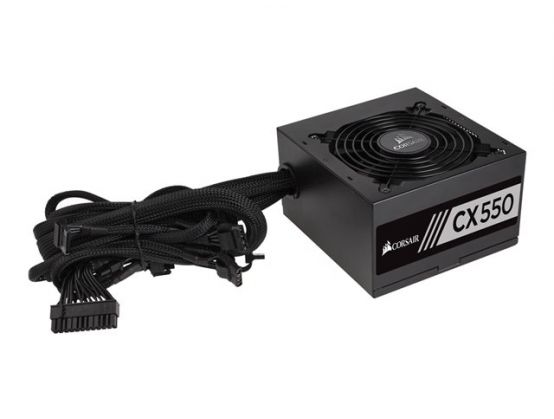

CORSAIR CX Series CX550 - Power supply (internal) - ATX12V 2.4/ EPS12V 2.92 - 80 PLUS Bronze - AC 100-240 V - 550 Watt - active PFC - United Kingdom
Low noise
Good looks
Corsair engineering and quality control
Ample connectors and long cables
Large-diameter, thermally controlled fan
Low noise80 plus bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation.Good looksThe matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.Corsair engineering and quality controlEvery Corsair power supply is designed by California engineering team and built to exact specifications. The same care that goes into the design and testing of the renowned high-power enthusiast power supplies also goes into the CX series, because you need confidence and reliability regardless of your build budget.Ample connectors and long cablesLong cables make CX series suitable for installation even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.Large-diameter, thermally controlled fanEmploying a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you're pushing your system hard.
Product DescriptionCORSAIR CX Series CX550 - power supply - 550 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.4/ EPS12V 2.92
80 PLUS Certification80 PLUS Bronze
Weight1.73 kg
LocalisationUnited Kingdom
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity550 Watt
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 5 x 15 pin Serial ATA power
Cooling System120 mm fan
Dimensions (WxDxH)15 cm x 14 cm x 8.6 cm
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.4/ EPS12V 2.92
PSU Form FactorATX
LocalisationUnited Kingdom
Power Device
Input VoltageAC 100-240 V
Frequency Required47 - 63 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 5 x 15 pin Serial ATA power
Output Voltage+3.3, +5, ±12 V
Power Capacity550 Watt
Output Current+3.3V - 25 A ¦ +5V - 20 A ¦ +12V - 45.8 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A
80 PLUS Certification80 PLUS Bronze
Miscellaneous
Cooling System120 mm fan
FeaturesOver voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, temperature controlled fan, rifle bearing cooling fan, non-modular
