Corsair RMx series power supplies give you extremely tight voltage control, quiet operation, Gold-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. And, the fully modular DC cables make builds and upgrades easy, with clean, great-looking results.
80 PLUS Gold certified
Japanese 105°C capacitors
Zero RPM fan mode
Fully modular cable set
80 PLUS Gold certifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.Zero RPM fan modeSince the fan doesn't turn on until it's needed, you'll enjoy virtually silent operation at low and medium loads.Fully modular cable setInstallation is faster, since you can mount the power supply in the case first, and then attach only the cables you need.
Product DescriptionCORSAIR RMx Series RM1000x - power supply - 1000 Watt
Device TypePower supply - internal
Specification ComplianceATX12V 2.4/ EPS12V 2.92
80 PLUS Certification80 PLUS Gold
Weight2.003 kg
LocalisationUnited Kingdom
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity1000 Watt

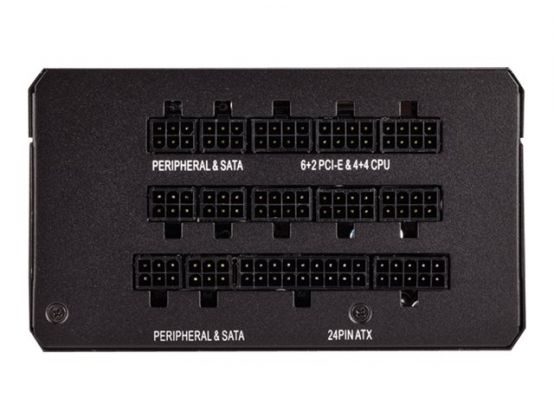

Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 11 x 4 PIN internal power ¦ 12 x 15 pin Serial ATA power ¦ 2 x 4 PIN mini-power connector ¦ 8 x 8 pin PCI Express power with detachable 2 pin section
Modular Cable ManagementYes
Cooling System135 mm fan
Included AccessoriesCable ties
Dimensions (WxDxH)15 cm x 18 cm x 8.6 cm
Manufacturer Warranty10 years warranty
Extended Specification
General
Device TypePower supply - internal
Specification ComplianceATX12V 2.4/ EPS12V 2.92
PSU Form FactorATX
LocalisationUnited Kingdom
Power Device
Input VoltageAC 100-240 V
Frequency Required47 - 63 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 11 x 4 PIN internal power ¦ 12 x 15 pin Serial ATA power ¦ 2 x 4 PIN mini-power connector ¦ 8 x 8 pin PCI Express power with detachable 2 pin section
Output Voltage+3.3, +5, ±12 V
Power Capacity1000 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Included AccessoriesCable ties
Cables IncludedPower cable kit
MTBF100,000 hours
Cooling System135 mm fan
FeaturesOver voltage protection, overpower protection, undervoltage protection, short-circuit protection, temperature controlled fan, Zero RPM fan mode, fully modular
