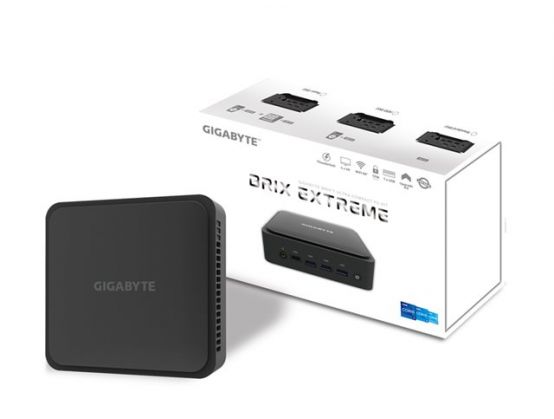

Gigabyte BRIX Extreme GB-BEi7-1260 (rev. 1.0) - mini PC Core i7 1260P 2.1 GHz - 0 GB - no HDD
Manufacture#: GB-BEI7-1260
Checking delivery…
Product details
Barebone
mini PC 1 x Core i7 1260P / up to 4.7 GHz
RAM 0 GB
Intel Iris Xe Graphics
Payment options available at checkout
Main features
Gigabyte BRIX Extreme GB-BEi7-1260 (rev. 1.0)
Barebone
mini PC 1 x Core i7 1260P / up to 4.7 GHz
RAM 0 GB
Intel Iris Xe Graphics
Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
Overview
Gigabyte BRIX Extreme GB-BEi7-1260 (rev. 1.0) - mini PC Core i7 1260P 2.1 GHz - 0 GB - no HDD
Product Description
Gigabyte BRIX Extreme GB-BEi7-1260 (rev. 1.0) - mini PC Core i7 1260P 2.1 GHz - 0 GB - no HDD
Type
PC barebone - mini PC
Processor
1 x Intel Core i7 (12th Gen) 1260P / 2.1 GHz (up to 4.7 GHz, (12-core)
Processor Main Features
Intel Smart Cache
Cache Memory
18 MB L3 Cache
Cache Per Processor
18 MB
RAM
0 GB (installed) / 64 GB (max) - DDR4 SDRAM
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
Intel Iris Xe Graphics
Audio Output
Stereo
Networking
1GbE, 2.5GbE, 802.11b/g/n, 802.11a, Wi-Fi 5, Bluetooth 5.2, Wi-Fi 6E
OS Provided
No operating system
Dimensions (WxDxH)
13.42 cm x 13.91 cm x 4.83 cm
General
Type
PC barebone
Product Form Factor
Mini PC
Processor / Chipset
CPU
Intel Core i7 (12th Gen) 1260P
Clock Speed
2.1 GHz (P-core) / 1.5 GHz (E-core)
Max Turbo Speed
4.7 GHz (P-core) / 3.4 GHz (E-core)
Number of Cores
12-core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Smart Cache
Cache Memory
Installed Size
L3 Cache - 18 MB
Cache Per Processor
18 MB
RAM
Installed Size
0 GB (installed) / 64 GB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
3200 MHz
Rated Memory Speed
3200 MHz
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 2 (empty)
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
Intel Iris Xe Graphics
Max Monitors Supported
4
Audio Output
Sound Output Mode
Stereo
Compliant Standards
High Definition Audio
Networking
Ethernet Controller
Intel i225
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
Expansion / Connectivity
Slots
1 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module)
Interfaces
1 x USB-C 3.2 Gen 2 (1 front) ¦ 3 x USB 3.2 Gen 2 (3 in front) ¦ 1 x headphones/microphone - mini-jack (1 front) ¦ 2 x HDMI (2 rear) ¦ 1 x Mini DisplayPort (1 rear) ¦ 1 x Thunderbolt 4/DisplayPort/USB-C (1 rear) ¦ 2 x USB 2.0 (2 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear)
Miscellaneous
Included Accessories
VESA bracket
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
VESA Mounting Interface
100 x 100 mm, 75 x 75 mm
Power
Device Type
Power adapter
Voltage Required
AC 100-240 V
Power Provided
135 Watt
Operating System / Software
OS Provided
No operating system
OS Certified
Windows 11, Windows 10
Dimensions & Weight
Width
13.42 cm
Depth
13.91 cm
Height
4.83 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
