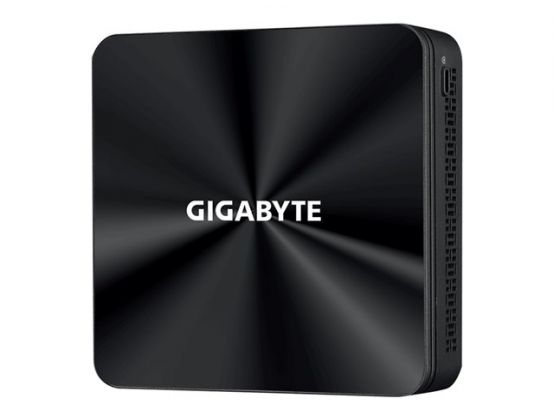

Ultra Compact PC Kit 1 x Core i7 10710U / up to 4.7 GHz
RAM 0 GB
UHD Graphics
Gigabit Ethernet
Overview
Challenging the essence of how a desktop PC is defined, GIGABYTE engineers have developed an ultra-compact PC with pure black stylish chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. The BRIX is perfect as a discreet HTPC/multimedia hub, an ultra-low-power PC for the family, an office PC or as a digital signage unit.
Processor1 x Intel Core i7 (10th Gen) 10710U / 1.1 GHz (up to 4.7 GHz, (6-core)
Cache Memory12 MB
Cache Per Processor12 MB
RAM0 GB (installed) / 64 GB (max) - DDR4 SDRAM
Hard DriveNo HDD
Optical StorageNo optical drive
Graphics ControllerIntel UHD Graphics
Audio OutputStereo
Networking1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 4.2
PowerAC 120/230 V
OS ProvidedNo operating system
Dimensions (WxDxH)11.95 cm x 11.95 cm x 3.47 cm
Extended Specification
General
TypePC barebone
Product Form FactorUltra Compact PC Kit
Processor / Chipset
CPUIntel Core i7 (10th Gen) 10710U
Clock Speed1.1 GHz
Max Turbo Speed4.7 GHz
Number of Cores6-core
CPU Qty1
Max CPU Qty1
Cache Memory
Installed Size12 MB
Cache Per Processor12 MB
RAM
Installed Size0 GB (installed) / 64 GB (max)
TechnologyDDR4 SDRAM
Form FactorSO-DIMM 260-pin
Slots2 (Total) / 2 (empty)
Hard Drive
TypeNo HDD
Optical Storage
TypeNo optical drive
Monitor
Monitor TypeNone.
Graphics Controller
Graphics ProcessorIntel UHD Graphics
Video InterfacesHDMI
Max Monitors Supported2
Audio Output
Sound Output ModeStereo
Networking
Ethernet ControllerIntel I219-V
Wireless LAN SupportedYes
Wireless NICIntel Dual Band Wireless-AC 3168
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2
Expansion / Connectivity
Slots1 (total) / 1 (free) x M.2 Card - 2280
Interfaces5 x USB 3.2 Gen 2 (3 front, 2 rear) ¦ 2 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (Gigabit Ethernet) (1 in front) ¦ 1 x headphones/microphone (1 in front)
