HP offers a full line of docking stations designed exclusively for select HP Business Notebook platforms so you can maintain the connectivity and comfort of your laptop at a fixed station.
Get convenient port replication and cord management, backward compatibility with legacy devices, room to grow with new technologies, and battery charging on the connected notebook.
Simply insert your laptop into the dock until it clicks and you’re ready to go—without the hassle of rerouting cables or reconnecting the devices at your desk.
USB 2.0 and 3.0 ports enable instant connection to your USB peripherals. USB 3.0 reduces the time required for data transmission (vs. USB 2.0), is backward compatible with USB 2.0, and is bi-directional.

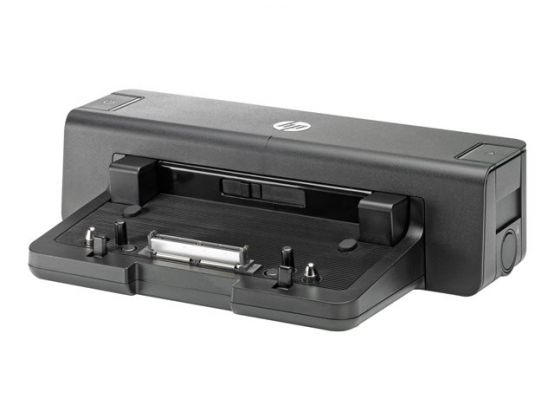

Product DescriptionHP 2012 90W Docking Station - docking station
Product TypeDocking station
Dimensions (WxDxH)26 cm x 16.36 cm x 6.6 cm
Weight1.07 kg
LocalisationEnglish / United Kingdom
PowerPower adapter - external AC 120/230 V (50/60 Hz) 90 Watt Power Provided
Manufacturer Warranty1-year warranty
Designed ForEliteBook 2170p, 8470p Notebook, 8470w Mobile Workstation, 8570p Notebook, 8570w Mobile Workstation, 8770w Mobile Workstation; ProBook 6470b, 6475b, 650 G1 Notebook, 6570b
Extended Specification
General
Product TypeDocking station
Width26 cm
Depth16.36 cm
Height6.6 cm
Weight1.07 kg
LocalisationEnglish / United Kingdom
Expansion / Connectivity
Interfaces4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x monitor stand port ¦ 1 x parallel - parallel - 25 pin D-Sub (DB-25) ¦ 1 x display / video - DVI-Digital - 24+1 pin digital DVI ¦ 1 x network - RJ-45 ¦ 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x serial - RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x audio - line-In - mini-phone 3.5 mm ¦ 1 x headphones - output - mini-phone 3.5 mm ¦ 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) ¦ 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
Miscellaneous
FeaturesSecurity lock slot (cable lock sold separately)
Security Slot TypeKensington security slot
Power
Power DevicePower adapter - external
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Provided90 Watt
Manufacturer Warranty
Service & SupportLimited warranty - 1 year ¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature10 °C
Max Operating Temperature35 °C
Compatibility Information
Designed ForHP EliteBook 2170p, 8470p Notebook, 8470w Mobile Workstation, 8570p Notebook, 8570w Mobile Workstation, 8770w Mobile Workstation ¦ HP ProBook 6470b, 6475b, 650 G1 Notebook, 6570b
