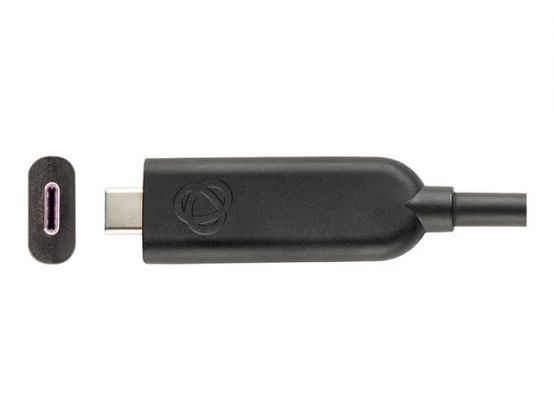

CLS-AOCU32/FF is a USB-C(M) to USB-C(M), USB 3.2 Gen-2 SuperSpeed+ active AOC hybrid cable offering reliable connectivity thanks to Kramer's unique K-Lock. Transfer video and data at incredible speeds in parallel to USB 2.0 and charge devices at 100 W - all with just one active AOC hybrid cable.¦CLS-AOCU32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low-profile USB-C connector, with the integrated K-Lock mechanism, can be plugged in any orientation, thus eliminating the frustration of getting the port insertion just right.
Reversible USB-C connector with integrated locking mechanism
Transfer rates up to 10 Gbps
100 W power (5 A, 20 V)
Plug-and-Play - monitors, cameras, printers, scanners, keyboards and other digital devices
USB backward compatibility - 1.0, 1.1, 2.0, and 3.0
Product DescriptionKramer CLS-AOCU32/FF - USB-C cable - 24 pin USB-C to 24 pin USB-C - 7.6 m
TypeUSB-C cable
TechnologyHybrid
FeaturesActive Optical Cable (AOC), reversible connector, 10 Gbps data rate, gold plated pins, up to 100W power max, minimum bend radius 36 mm, 4K@60Hz, backwards compatible with USB1.0, USB1.1, USB2.0 and USB3.0
Length7.6 m
Connector24 pin USB-C - male - K-Lock
Connector (Second End)24 pin USB-C - male - K-Lock
Rated Voltage30 V
Rated Current5 A
Compliant StandardsUSB 3.2 Gen 2
ColourBlack
Extended Specification
General
TypeUSB-C cable
TechnologyHybrid
Jacket MaterialLow Smoke Halogen Free (LSHF) PVC
American Wire Gauge (AWG)20-28
Rated Voltage30 V
Rated Current5 A
Plated ConnectorNickel
FeaturesActive Optical Cable (AOC), reversible connector, 10 Gbps data rate, gold plated pins, up to 100W power max, minimum bend radius 36 mm, 4K@60Hz, backwards compatible with USB1.0, USB1.1, USB2.0 and USB3.0
Length7.6 m
Outside Diameter5.8 mm
ColourBlack
Connectivity
Connector24 pin USB-C - male - K-Lock
Connector (Second End)24 pin USB-C - male - K-Lock
Miscellaneous
Compliant StandardsUSB 3.2 Gen 2, Plug and Play, FCC, RoHS, REACH, CPR Dca
