General
Device Type

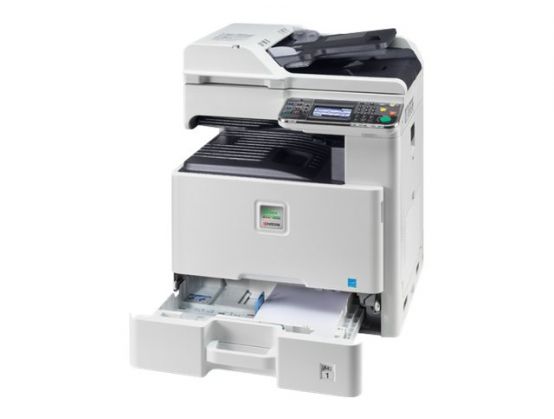

Multifunction printer
Printing Technology
Laser - colour
Display Features
Touch screen
Connection Availability
Yes
Interface
USB 2.0, Gigabit LAN, USB host
Office Machine Features
Save to USB flash drive, scan to e-mail, scan to folder, scan to network, HyPAS (Hybrid Platform for Advanced Solutions), Kyocera ECOSYS Technology
Memory
Standard Memory
1.5 GB
Max Supported Memory
2 GB
Supported Flash Memory
CompactFlash
Copying
Max Copying Speed
Up to 20 ppm (mono) / up to 20 ppm (colour)
Max Copying Resolution
Up to 600 x 600 dpi (mono) / up to 600 x 600 dpi (colour)
Max Document Enlargement
400%
Max Document Reduction
25%
Maximum Copies
999
Exposure Modes
Text, photo, text and photo
Automatic Duplexing
Yes
Copying Features
2 on 1, auto tray switching, 4 on 1
Printing
Max Printing Resolution
Up to 600 x 600 dpi (mono) / up to 600 x 600 dpi (colour)
Max Printing Speed
Up to 20 ppm (mono) / up to 20 ppm (colour)
Printer Drivers / Emulations
PCL 6, PostScript 3, PCL 5c, KPDL3, PCL 6 (XL), PDF, XPS
Automatic Duplexing
Yes
First Print Out Time B/W
11 sec
First Print Out Time Colour
14 sec
Scanning
Automatic Duplexing
Yes
Optical Resolution
600 dpi
Grayscale Depth
8-bit
Document & Media Handling
Max Original Size
A3 (297 x 420 mm), Ledger (279 x 432 mm)
Original Type
Sheets
Document Feeder Capacity
50 sheets
Min Media Size
98 x 148 mm
Max Media Size
A3/Ledger
Min Media Weight
60 g/m²
Max Media Weight
256 g/m²
Supported Media Type
Envelopes, plain paper
Supported Media Sizes
ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A3 (297 x 420 mm), A6 (105 x 148 mm), ANSI B (Ledger) (279 x 432 mm), Folio (216 x 330 mm)
Standard Media Capacity
600 sheets
Max Media Capacity
1600 sheets
Bypass Feeder Capacity
100 sheets
Output Trays Capacity
280 sheets
Document & Media Handling Details
Paper cassette - 500 sheets - A3 (297 x 420 mm) weight: 60 g/m² - 256 g/m² ¦ Bypass tray - 100 sheets size: 98 x 148 mm - A3/Ledger (297 x 432 mm) weight: 60 g/m² - 256 g/m² ¦ RADF - 50 sheets size: 140 x 182 mm - A3/Ledger (297 x 432 mm) weight: 45 g/m² - 160 g/m² ¦ Output tray - 250 sheets ¦ Job separator tray - 30 sheets
Speed Details
Printing: up to 20 ppm (A4) - B/W ¦ Printing: up to 20 ppm (A4) - colour ¦ Copying: up to 20 ppm (A4) - B/W ¦ Copying: up to 20 ppm (A4) - colour ¦ Scanning: up to 40 ipm (A4) - B/W ¦ Scanning: up to 40 ipm (A4) - colour ¦ Printing: up to 10 ppm (A3) - B/W ¦ Printing: up to 10 ppm (A3) - colour
Connections
Interfaces
1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x Gigabit LAN - RJ-45
Security Protocols & Features
SSL, IPsec
Operating System Support
UNIX, Linux, Apple MacOS X 10.4 or later, MS Windows
Power
Voltage Required
AC 230 V (50/60Hz)
Power Consumption Operational
557 Watt
Power Consumption Standby
121 Watt
Power Consumption Sleep
0.9 Watt
Miscellaneous
Warm-Up Time
55 sec
First Copy Out Time B/W
11.7 sec
First Copy Out Time Colour
13.6 sec
Consumables Included
1 x toner cartridge (black) - up to 3000 pages ¦ 1 x toner cartridge (cyan) - up to 1500 pages ¦ 1 x toner cartridge (magenta) - up to 1500 pages ¦ 1 x toner cartridge (yellow) - up to 1500 pages
Compliant Standards
TUV GS, ISO 9001, ISO 14001
Environmental Standards
ENERGY STAR Certified
Yes
Blue Angel Compliant
Yes
Dimensions & Weight
Width
59 cm
Depth
59 cm
Height
74.8 cm
Weight
80 kg
Environmental Parameters
Sound Emission
35 dBA (idle) / 47 dBA (operating)
