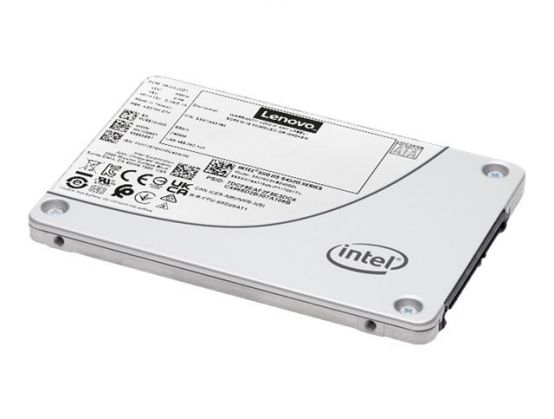

Lenovo ThinkSystem S4520 - SSD - Read Intensive - 7.68 TB - SATA 6Gb/s - CRU
£3932 .59
£4719.11 inc VAT
Order by 15:00 and receive your order on Monday 21 Apr
Product details
SSD
Read Intensive
encrypted
7.68 TB
Payment options available at checkout
Main features
Lenovo ThinkSystem S4520
SSD
Read Intensive
encrypted
7.68 TB
hot-swap
2.5"
SATA 6Gb/s
256-bit AES
CRU
for ThinkAgile VX3530-G Appliance; VX7530 Appliance; VX7531 Certified Node
Overview
The design of the S4520 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.
Product Description
Lenovo ThinkSystem S4520 - SSD - Read Intensive - 7.68 TB - SATA 6Gb/s - CRU
Type
Solid state drive - hot-swap
Capacity
7.68 TB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
2.5"
Interface
SATA 6Gb/s
Data Transfer Rate
600 MBps
Drive Class
Read Intensive
Features
Thermal throttling, End-to-end data protection, power loss data protection, S.M.A.R.T.
Dimensions (WxDxH)
70 mm x 100 mm x 7 mm
Weight
70 g
Pricing Type
Customer-replaceable Unit (CRU)
Manufacturer Warranty
1-year warranty
Designed For
ThinkAgile VX3530-G Appliance 7Z63 (2.5"); VX7530 Appliance 7Z63 (2.5"); VX7531 Certified Node 7Z63 (2.5"); ThinkSystem SD530 7X21 (2.5"); SN550 7X16 (2.5"); SN850 7X15 (2.5"); SR530 7X07 (2.5"), 7X08 (2.5"); SR550 7X03 (2.5"), 7X04 (2.5"); SR570 7Y02 (2.5"), 7Y03 (2.5"); SR590 7X98 (2.5"), 7X99 (2.5"); SR630 7X01 (2.5"), 7X02 (2.5"); SR635 7Y98 (2.5"), 7Y99 (2.5"); SR645 7D2X (2.5"), 7D2Y (2.5"); SR650 7X05 (2.5"), 7X06 (2.5"); SR650 V2 7D15 (2.5"); SR655 7Y00 (2.5"), 7Z01 (2.5"); SR665 7D2V (2.5"), 7D2W (2.5"); SR850 7X18 (2.5"), 7X19 (2.5"); SR850 V2 7D31 (2.5"), 7D32 (2.5"); SR850P 7D2F (2.5"); SR860 7X69, 7X70; SR860 V2 7Z59, 7Z60; SR950 7X11, 7X12; ST250 7Y45, 7Y46; ST550 7X09, 7X10
General
Device Type
Solid state drive - hot-swap
Capacity
7.68 TB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
2.5"
Interface
SATA 6Gb/s
Features
Thermal throttling, End-to-end data protection, power loss data protection, S.M.A.R.T.
Width
70 mm
Depth
100 mm
Height
7 mm
Weight
70 g
Performance
Drive Writes Per Day (DWPD)
2.6
SSD Endurance
36.5 PB
Drive Class
Read Intensive
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
550 MBps (read) / 510 MBps (write)
4KB Random Read
80000 IOPS
4KB Random Write
32000 IOPS
Average Latency
36 µs
Reliability
MTBF
2,000,000 hours
Non-Recoverable Errors
1 per 10^17
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Compatible Bay
2.5"
Miscellaneous
Included Accessories
Hot-plug tray
Compliant Standards
VCCI, ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, CNS 13438, RoHS 2011/65/EU, EN55022:2006, AS/NZS CISPR22:2009+A1:2010, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, EN 55032:2012, KCC Article 11.1, AS/NZS CISPR 32:2015, EN 55035:2017, FCC Title 47
Pricing Type
Customer-replaceable Unit (CRU)
Dimensions & Weight (Shipping)
Shipping Width
17.4 cm
Shipping Depth
13.3 cm
Shipping Height
6.3 cm
Shipping Weight
434 g
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95% (non-condensing)
Shock Tolerance (non-operating)
1000 g @ 0.5 ms
Vibration Tolerance (operating)
5-700 Hz
Compatibility Information
Designed For
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5") ¦ Lenovo ThinkSystem SD530 7X21 (2.5") ¦ Lenovo ThinkSystem SN550 7X16 (2.5") ¦ Lenovo ThinkSystem SN850 7X15 (2.5") ¦ Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08 (2.5") ¦ Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5") ¦ Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5") ¦ Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5") ¦ Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5") ¦ Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5") ¦ Lenovo ThinkSystem SR645 7D2X (2.5"), 7D2Y (2.5") ¦ Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5") ¦ Lenovo ThinkSystem SR650 V2 7D15 (2.5") ¦ Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5") ¦ Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5") ¦ Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5") ¦ Lenovo ThinkSystem SR850 V2 7D31 (2.5"), 7D32 (2.5") ¦ Lenovo ThinkSystem SR850P 7D2F (2.5") ¦ Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5") ¦ Lenovo ThinkSystem SR860 V2 7Z59 (2.5"), 7Z60 (2.5") ¦ Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5") ¦ Lenovo ThinkSystem ST250 7Y45 (2.5"), 7Y46 (2.5") ¦ Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10 (2.5")
