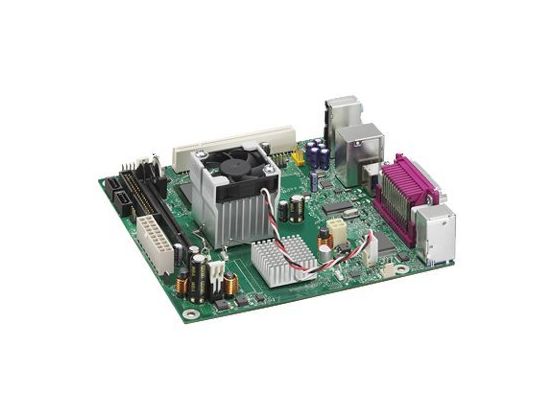

The Intel Desktop Board D945GCLF is designed to support Internet-centric computing delivering incredible capabilities for the flexible Mini-ITX form factor. Featuring the integrated 45nm Intel Atom Processor and the Intel 945GC Express Chipset, this board is an energy-efficient solution for home users as well as for unique vertical market needs. Designed with Intel's leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.
Product DescriptionIntel Desktop Board D945GCLF - Essential Series - motherboard - mini ITX / micro ATX - Intel Atom 230 - i945GC
Product TypeMotherboard - mini ITX / micro ATX
ProcessorIntel Atom 230 / 1.6 GHz
Chipset TypeIntel 945GC Express / Intel ICH7
Max RAM Size2 GB
RAM Supported1 DIMM slot - DDR2 unbuffered
Storage Ports1 x ATA, 2 x SATA
USB Ports Configuration6 x USB
GraphicsIntel GMA 950
Max Allocated RAM Size224 MB
AudioHD Audio
LANEthernet
Microsoft CertificationWorks with Windows Vista
Manufacturer Warranty3-year warranty
Extended Specification
General
Product TypeMotherboard - mini ITX / micro ATX
ProcessorIntel Atom 230 / 1.6 GHz
Cache MemoryL2 - 512 KB
Chipset TypeIntel 945GC Express / Intel ICH7
Max Bus Speed533 MHz
Supported RAM
Max Size2 GB
TechnologyDDR2
Bus Clock800 MHz, 667 MHz, 533 MHz, 400 MHz
SpeedPC2-6400, PC2-5300, PC2-4300, PC2-3200
Registered or BufferedUnbuffered
Graphics
Graphics ControllerIntel GMA 950
Memory Allocation TechnologyDynamic Video Memory Technology 3.0
Max Allocated RAM Size224 MB
Audio
TypeHD Audio
Audio CodecRealtek ALC662
Compliant StandardsHigh Definition Audio
LAN
Network InterfacesEthernet
Expansion / Connectivity
Expansion Slots1 x DIMM 240-pin (1.8 V) ¦ 1 x PCI
Storage InterfacesSATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices ¦ ATA-100 -connectors: 1 x 40pin IDC - 2 devices
Interfaces4 x USB 2.0 ¦ 1 x serial ¦ 1 x parallel ¦ 1 x VGA ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 1 x LAN ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack
Additional Connectors (Optional)2 x USB 2.0
Power Connectors4-pin ATX12V connector, 20-pin main power connector
Features
BIOS TypeIntel
BIOS FeaturesACPI support, rapid BIOS boot, SMBIOS support
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage
Sleep / Wake UpKeyboard wake up, mouse wake up, wake on PCI device, wake on USB port
Miscellaneous
Cables Included1 x IDE cable ¦ 1 x Serial ATA cable
Software IncludedIntel Express Installer
Works with Windows VistaSoftware and devices that carry the Works with Windows Vista logo have been tested for baseline compatibility with PC's running.
