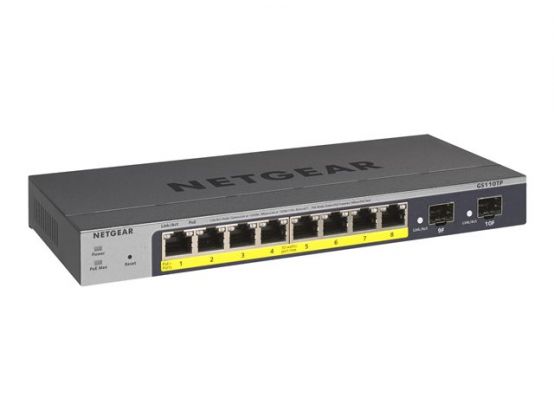

Name: NETGEAR Smart GS110TPv3 - Switch - smart - 8 x 10/100/1000 (PoE) + 2 x SFP - desktop, wall-mountable - PoE+ (55 W) - DC power
Brand: NETGEAR
SKU: 1TNETNHS-031492
Price: 121.37 GBP
Availability: OutOfStock

Overview

Main features

NETGEAR Smart GS110TPv3
Switch
smart
8 x 10/100/1000 (PoE) + 2 x SFP
desktop, wall-mountable
PoE+ (55 W)
DC power

Overview

The GS110TPv3 adds full 8 port PoE support for deployment of modern PoE devices. Cautious spender organizations can now deploy PoE devices connected to a cost effective switch, with a reasonable PoE power budget of 55W. Each port can provide up to 30 watts to power up connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting.

Specification

Product Description NETGEAR Smart GS110TPv3 - switch - 8 ports - smart

Device Type Switch - 8 ports - smart

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE) + 2 x SFP

Power Over Ethernet (PoE) PoE+

PoE Budget 55 W

Performance Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.8 Mpps

Capacity Packet buffer size: 512 KB ¦ ACL entries (ingress): 100 ¦ VLANs supported: 64 ¦ IPv4 routes (static): 32

MAC Address Table Size 8K entries

Jumbo Frame Support 10KB

Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPv6

Features IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, MLD snooping, fanless, LACP, DHCP client, dual firmware images, loop prevention, tagged VLAN, cable test, LLDP-MED, protected ports, EEE, WRR, Advanced QoS, Unknown Storm Control, security slot (Kensington security lock compatible)

Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Power DC 54 V

Dimensions (WxDxH) 23.6 cm x 10.1 cm x 2.7 cm

Weight 610 g

Localisation Europe

Manufacturer Warranty NETGEAR lifetime warranty

General

Device Type Switch - 8 ports - smart

Enclosure Type Desktop, wall-mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE) + 2 x SFP

Power Over Ethernet (PoE) PoE+

PoE Budget 55 W

Performance Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.8 Mpps

Capacity Packet buffer size: 512 KB ¦ ACL entries (ingress): 100 ¦ VLANs supported: 64 ¦ IPv4 routes (static): 32

MAC Address Table Size 8K entries

Jumbo Frame Support 10KB

Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPv6

Encryption Algorithm TLS 1.2

Authentication Method RADIUS, TACACS+

Features IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, MLD snooping, fanless, LACP, DHCP client, dual firmware images, loop prevention, tagged VLAN, cable test, LLDP-MED, protected ports, EEE, WRR, Advanced QoS, Unknown Storm Control, security slot (Kensington security lock compatible)

Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Processor : 500 MHz

RAM 128 MB

Flash Memory 32 MB

Status Indicators Port status, PoE, link/activity/speed

Expansion / Connectivity

Interfaces 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP

Power

Power Device External power adapter

Voltage Required DC 54 V

Power Consumption Operational 69.5 Watt

Power Consumption Stand by 4.3 Watt

Miscellaneous

Included Accessories Wall mounting kit

MTBF 1,200,041 hours

Localisation Europe

Dimensions & Weight

Width 23.6 cm

Depth 10.1 cm

Height 2.7 cm

Weight 610 g

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Limited warranty - power supply - 2 years ¦ Technical support - phone consulting - 90 days

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 95% (non-condensing)

Min Storage Temperature -20 °C

Max Storage Temperature 70 °C

Humidity Range Storage 95% (non-condensing)
