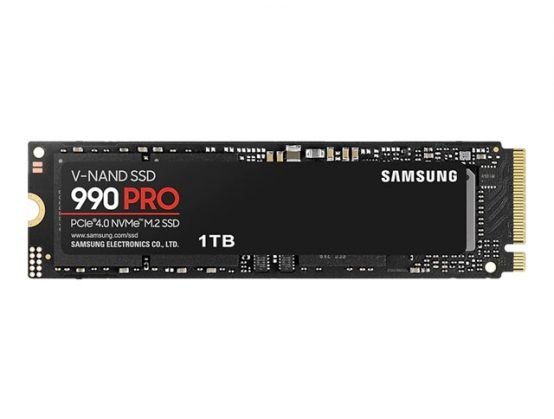

Samsung 990 PRO MZ-V9P1T0BW - SSD - encrypted - 1 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption 2.0
Manufacture#: MZ-V9P1T0BW
Checking delivery…
Product details
SSD
encrypted
1 TB
internal
Payment options available at checkout
Main features
Samsung 990 PRO MZ-V9P1T0BW
SSD
encrypted
1 TB
internal
M.2 2280
PCIe 4.0 x4 (NVMe)
256-bit AES
TCG Opal Encryption 2.0
Overview
Reach max performance of PCIe 4.0. Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.
Product Description
Samsung 990 PRO MZ-V9P1T0BW - SSD - 1 TB - PCIe 4.0 x4 (NVMe)
Type
Solid state drive - internal
Capacity
1 TB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
Triple-level cell (TLC)
Form Factor
M.2 2280
Interface
PCIe 4.0 x4 (NVMe)
Data Transfer Rate
8 GBps
Features
1 GB Low Power DDR4 SDRAM Cache, TRIM support, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, sleep mode, Samsung V-NAND 3bit MLC Technology, NVMe 2.0, S.M.A.R.T.
Dimensions (WxDxH)
22 mm x 80 mm x 2.3 mm
Weight
9 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
1 TB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
Triple-level cell (TLC)
Form Factor
M.2 2280
Interface
PCIe 4.0 x4 (NVMe)
Features
1 GB Low Power DDR4 SDRAM Cache, TRIM support, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, sleep mode, Samsung V-NAND 3bit MLC Technology, NVMe 2.0, S.M.A.R.T.
Width
22 mm
Depth
80 mm
Height
2.3 mm
Weight
9 g
Performance
SSD Endurance
600 TB
Drive Transfer Rate
8 GBps (external)
Internal Data Rate
7450 MBps (read) / 6900 MBps (write)
4KB Random Read
1200000 IOPS
4KB Random Write
1550000 IOPS
Reliability
MTBF
1,500,000 hours
Expansion & Connectivity
Compatible Bay
M.2 2280
Power
Power Consumption
5.4 Watt (read) ¦ 5 Watt (write) ¦ 50 mW (idle) ¦ 5 mW (L1.2 mode)
Software & System Requirements
Software Included
Samsung Magician Software
Miscellaneous
Compliant Standards
IEEE 1667, FCC, UKCA, cRUus, VCCI, EAC
Package Details
Box
Manufacturer Warranty
Service & Support
Limited warranty - 5 years / 600 TBW
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Operating
5 - 95% (non-condensing)
Shock Tolerance (non-operating)
1500 g @ 0.5 ms
Vibration Tolerance (non-operating)
20 g @ 20-2000 Hz
