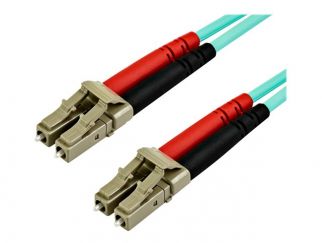

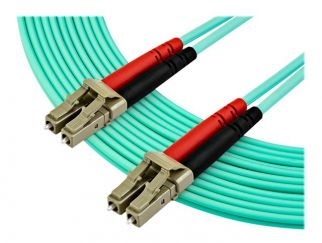

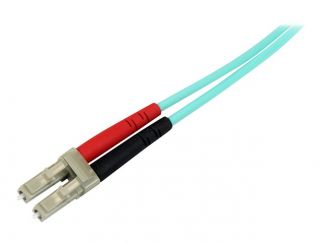

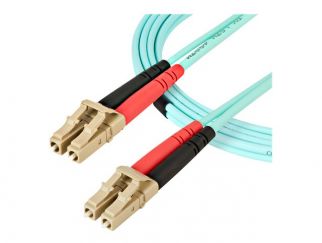

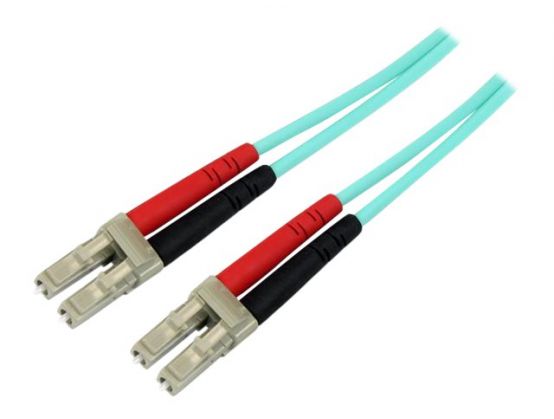

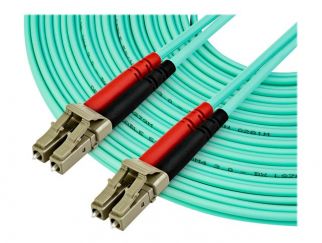

3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G Networks, Low Insertion Loss - LSZH Fiber Patch Cord (450FBLCLC3).
- OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
- SPECS: 3m (9.8ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
High-performance design
Featuring laser-optimized multimode fiber, this cable enhances data transmission efficiency and minimizes signal loss over distances.
Advanced technology
Equipped with VCSEL array technology, this cable provides effective data handling and increased bandwidth for demanding applications.
Durable construction
The low smoke zero halogen jacket material ensures safety and durability, making it suitable for various environments where safety is a concern.
Efficient connectivity
With both left and right connectors utilizing LC multi-mode interfaces, the cable allows for seamless connections with compatible devices.
Robust performance
With a tested frequency of up to 3500 MHz, this cable is designed to meet the needs of high-speed networking applications.
