SYNOLOGY

Synology k/RS1221+_+8x_HAT5300-12T

Name: Synology k/RS1221+_+8x_HAT5300-12T
Brand: SYNOLOGY
SKU: 1TSTOHDA-009647
Price: 5342.21 GBP
Availability: InStock

SKU

1TSTOHDA-009647

Manufacture#: K/RS1221+_+8X_HAT5300-12T

Be the first to review this product

£4451.84

£5342.21 inc VAT

Checking delivery…

Product details

NAS server
8 bays
96 TB
rack-mountable

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

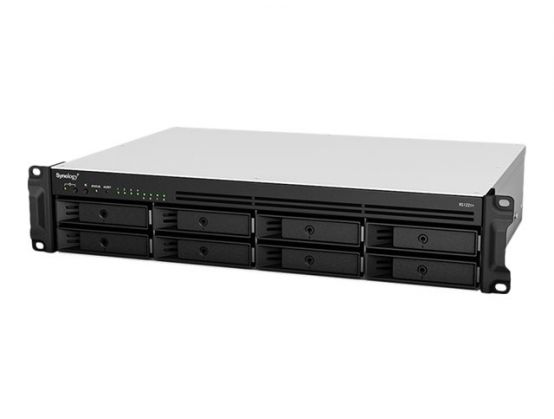

Synology RackStation RS1221+
NAS server
8 bays
96 TB
rack-mountable
SATA 6Gb/s
HDD 12 TB x 8
RAID RAID 0, 1, 5, 6, 10, JBOD
RAM 4 GB
Gigabit Ethernet
iSCSI support
2U

Overview

A powerful storage solution for businesses and IT enthusiasts with redundancy and service continuity features.

Specification

Product Description Synology RackStation RS1221+ - NAS server - 96 TB

Device Type NAS server

Host Connectivity Gigabit Ethernet

Enclosure Type Rack-mountable - 2U

Total Storage Capacity 96 TB

Installed Devices / Modules Qty 8 (installed) / 8 (max)

Dimensions (WxDxH) 48.2 cm x 30.66 cm x 8.8 cm

Weight 6.9 kg ()

Processor 1 x Ryzen Embedded V1500B 2.2 GHz (Quad-Core)

Storage Controller RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD

Hard Drive 8 x 12 TB SATA 6Gb/s - Synology

Networking 10Mb LAN, 100Mb LAN, GigE

IP Cameras Supported 40

RAM 4 GB

Power AC 100-240 V (50/60 Hz)

System Requirements Microsoft Windows 7 or later, Apple macOS 10.12 or later

Manufacturer Warranty 3-year warranty

General

Device Type NAS server

Host Connectivity Gigabit Ethernet

Enclosure Type Rack-mountable - 2U

Total Storage Capacity 96 TB

Installed Devices / Modules Qty 8 (installed) / 8 (max)

Width 48.2 cm

Depth 30.66 cm

Height 8.8 cm

Weight 6.9 kg ()

Processor / Memory

Processors Installed 1 x Ryzen Embedded V1500B 2.2 GHz

Number of Cores Quad-Core

Max Supported Qty 1

RAM 4 GB (installed) / 32 GB (supported) - DDR4

Features ECC

Storage Controller

Type RAID

Interface Type SATA 6Gb/s

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD

Hard Drive

Type HDD - hot-swap - 3.5"

Capacity 8 x 12 TB

Interface Type SATA 6Gb/s

Spindle Speed 7200 rpm

Manufacturer Synology

Networking

Data Link Protocol 10Mb LAN, 100Mb LAN, GigE

Network / Transport Protocol PPTP, L2TP, iSCSI, FTP, SMB, NFS, HTTP, HTTPs, SMB v2, Telnet, SMB v3

Remote Management Protocol SNMP, Telnet, SSH

Network Services Compatibility Microsoft Active Directory (AD), Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1)

Features Firewall protection, LDAP support, wake on LAN (WOL), Syslog support, antivirus analysis, High Availability, video server, POP3 e-mail server, Access Control List (ACL) support, RADIUS support, FTP server, e-mail server, reset button, surveillance station, DNS server, VPN Server, Link Aggregation, scheduler, failover protection, B-tree file system (Btrfs), network virtualisation (NV), file station, EXT4 file system, SSD trim, RAID migration, MailPlus server, hybrid backup sync

Encryption Algorithm AES, SSL, TLS

Security DVR

IP Cameras Supported 40

Expansion / Connectivity

Expansion Bays 8 (total) / 0 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots 1 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 1 (total) / 1 (free) x expansion slot

Interfaces 4 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x eSATA

Miscellaneous

Features Built-in 2 cooling fans, 80mm cooling fan

Compliant Standards VCCI, BSMI, CCC, FCC, AES, RoHS, KC, EAC, RCM

Power

Power Device Internal power supply

Voltage Required AC 100-240 V (50/60 Hz)

Software / System Requirements

OS Required Microsoft Windows 7 or later, Apple macOS 10.12 or later

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 35 °C

Humidity Range Operating 5 - 95%

Sound Emission 40 dBA
