15IN CAP STD VDC 12-48V INT ANT W10 IOT 4/64GB SUMMIT PE15N
£2751 .97
£3302.36 inc VAT
Checking delivery…
Product details
Rugged
vehicle mount computer
Intel Atom
E3845
Payment options available at checkout
Main features

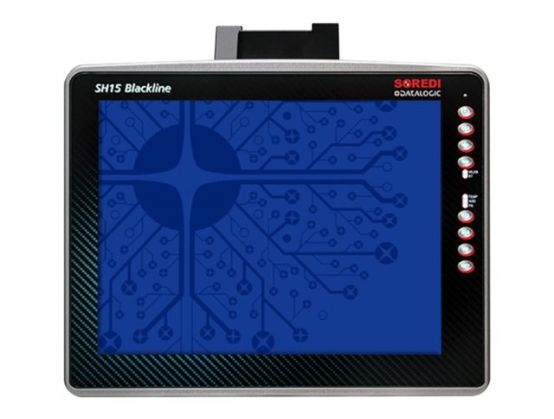

Datalogic Blackline SH15
Rugged
vehicle mount computer
Intel Atom
E3845
Win 10 IoT Enterprise
4 GB RAM
64 GB SSD
15" touchscreen 1024 x 768
Gigabit Ethernet -
Overview
The SH15 Blackline computer is a rugged vehicle mount computer (VMC) as well as a fixed mount unit for use in most any industrial application. A sealed design tested to IP65/IP67 ensures operation for both computers in the toughest environments. The capacitive touchscreen features a 3 mm anti-glare armored glass which can be used even when wearing gloves.
Product Description
Datalogic Blackline SH15 - 15" - Intel Atom - E3845 - 4 GB RAM - 64 GB SSD
Product Type
Vehicle mount computer - rugged
Operating System
Win 10 IoT Enterprise
Processor
Intel Atom E3845 / 1.91 GHz
Memory
4 GB
Storage
64 GB SSD
Display
15" touchscreen 1024 x 768 / XGA
Input Device
4 front panel programmable buttons
Networking
802.11a/b/g/n, Bluetooth 4.0, Gigabit Ethernet
Dockable
Yes
Dimensions (WxDxH)
38 cm x 30.5 cm x 6.7 cm
Weight
6.5 kg
Manufacturer Warranty
Limited warranty - 1 year
General
Product Type
Vehicle mount computer - rugged
Operating System
Windows 10 IoT Enterprise
Processor / Chipset
CPU
Intel Atom E3845 / 1.91 GHz
Number of Cores
Quad-Core
Storage
Main Storage
64 GB SSD
Display
Type
15"
Touchscreen
Yes (multi-touch)
Resolution
1024 x 768 (XGA)
Widescreen
No
Image Brightness
400 cd/m²
Features
Anti-glare, glove touch mode, capacitive touch screen, glass front frame, carbon design display frame
Input
Type
4 front panel programmable buttons
Communications
Wireless
802.11a/b/g/n, Bluetooth 4.0
Wireless Controller
Summit SDC-PE15N
Network Interface
Gigabit Ethernet
Battery
Capacity
2500 mAh
AC Adapter
Input
AC 110-230 V
Output
DC 12 - 48 V
Connections & Expansion
Slots
PCI Express Mini Card ¦ 2 x CFast Card ¦ 1 x SDHC Memory Card (1 free)
Interfaces Details
2 x serial (RS-232) ¦ 2 x USB 2.0 ¦ USB 3.0 ¦ LAN (RJ-45) ¦ HDMI
Memory Card Reader
Yes (SD Card, SDHC Card)
Software
Software Included
Topsystem Pick by Voice, SOTI Wavelink
Miscellaneous
Case Material
Aluminum
Dockable
Yes
Features
Water-resistant, moisture resistant, dust-resistant, shock-resistant, drop-resistant, vibration-resistant, diversity aerial
Compliant Standards
FCC, RoHS, CCX V4, IP67, IP65, IEC 60721-3-5 Class 5M3
Dimensions & Weight
Dimensions (WxDxH)
38 cm x 30.5 cm x 6.7 cm
Weight
6.5 kg
Sustainability Information
TCO Certified
-
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% (non-condensing)
