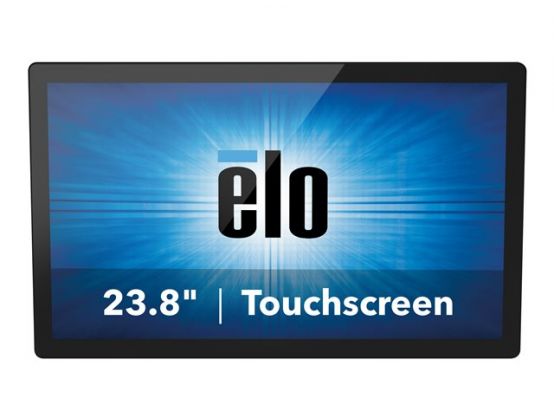

2494L 23.8IN FHD LCD WVA LED BACKLIGHT OPEN FRAME 10 TOUCH Z
Checking delivery…
Product details
LED monitor
23.8"
open frame
touchscreen
Payment options available at checkout
Main features
Elo 2494L
LED monitor
23.8"
open frame
touchscreen
1920 x 1080 Full HD (1080p) @ 60 Hz
250 cd/m²
3000:1
16 ms
HDMI, VGA, DisplayPort
black
Overview
The Elo 2494L 23.8-inch open-frame touch display features a thin and compact state-of-the-art design, with energy-saving and low-heat LED panels. Available with IntelliTouch (SAW) or TouchPro (PCAP) touch technologies, the 2494L offers the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.¦Featuring a brilliant wide viewing angle panel, Elo's open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for integrating in any table, kiosk, or cabinet design. With proven Elo expertise and reliability built in, the industrial-grade displays provide outstanding image clarity and light transmissivity as well as stable, drift-free operation for accurate touch responses.
Product Description
Elo 2494L - LED monitor - Full HD (1080p) - 23.8"
Device Type
LED-backlit LCD monitor - 23.8" - touchscreen
Features
Touch-screen
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080 at 60 Hz
Brightness
250 cd/m²
Contrast Ratio
3000:1
Response Time
16 ms
Colour Support
16.7 million colours
Input Connectors
HDMI, VGA, DisplayPort
Built-in Ethernet
Yes
Colour
Black
Dimensions (WxDxH)
56.92 cm x 3.8 cm x 34.11 cm
Weight
6.17 kg
Compliant Standards
UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IK07, DisplayPort 1.1a
Manufacturer Warranty
3-year warranty
General
Display Type
LED-backlit LCD monitor
Diagonal Size
23.8"
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080 at 60 Hz
Brightness
250 cd/m²
Brightness w/touchscreen
225 cd/m²
Contrast Ratio
3000:1
Colour Support
16.7 million colours
Response Time
16 ms
Vertical Refresh Rate
50 - 75 Hz
Horizontal Refresh Rate
30 - 82 kHz
Horizontal Viewing Angle
178
Vertical Viewing Angle
178
Backlight Technology
LED backlight
OSD Languages
Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Features
Projected Capacitive Touch (P-CAP) technology
Colour
Black
Dimensions (WxDxH)
56.92 cm x 3.8 cm x 34.11 cm
Weight
6.17 kg
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive
Connectivity
Interfaces
HDMI ¦ VGA ¦ DisplayPort ¦ USB 2.0 (Type B) ¦ Management (RJ-45)
Mechanical
VESA Mounting Interface
200 x 100 mm
Miscellaneous
Included Accessories
Remote control
Cables Included
1 x HDMI cable ¦ 1 x VGA cable ¦ 1 x USB cable
Mounting Kit
Included
MTBF
50,000 hour(s)
Compliant Standards
UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IK07, DisplayPort 1.1a
Power
Power Consumption (Typical)
17.46 Watt
Power Consumption Sleep
1.07 Watt
Power Consumption (Off Mode)
0.2 Watt
Dimensions & Weight (Shipping)
Shipping Width
69.2 cm
Shipping Depth
19 cm
Shipping Height
45.2 cm
Shipping Weight
8.07 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80% (non-condensing)
