Name: Allied Telesis CentreCOM AT-GS970EMX/28 - Switch - L3 Lite - Managed - 24 x 10/100/1000 + 2 x 1/2.5/5/10GBase-T + 2 x 1 Gigabit / 10 Gigabit SFP+ - desktop, rack-mountable
Brand: ALLIED TELESIS
SKU: 1TWARWAR-428105
Price: 1482.11 GBP
Availability: InStock

Overview

Main features

Allied Telesis CentreCOM AT-GS970EMX/28
Switch
L3 Lite
Managed
24 x 10/100/1000 + 2 x 1/2.5/5/10GBase-T + 2 x 1 Gigabit / 10 Gigabit SFP+
desktop, rack-mountable

Overview

Allied Telesis CentreCOM AT-GS970EMX/28 - switch - 28 ports - Managed - rack-mountable

Specification

Product Description Allied Telesis CentreCOM AT-GS970EMX/28 - switch - 28 ports - Managed - rack-mountable

Device Type Switch - 28 ports - L3 Lite - Managed - stackable

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 2 x 1/2.5/5/10GBase-T + 2 x 1 Gigabit / 10 Gigabit SFP+

Performance Switching fabric bandwidth: 128 Gbps ¦ Forwarding performance: 95.2 Mpps

MAC Address Table Size 16K entries

Jumbo Frame Support 12KB

Routing Protocol OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, MSDP, static IPv4 routing, static IPv6 routing, MLDv2, MLD

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SMTP, DHCP

Features ARP support, OCSP support, VLAN support, IGMP snooping, DiffServ support, MAC address filtering, DHCP snooping, TFTP support, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, UDLD, fanless, SNMP trap, MIB, MAC address lockout, GVRP, NAC, port isolation, MSDP, SFTP client, VoIP support, IP source guard, EPSRing, VCStack, BPDU, ICMP, SCP, AMF, BIST, Cable fault locator (TDR), DDM, NTP, Active Fiber Monitoring, AAA, IGMP querier, DNS client, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, UDP, VLAN Tagging, BPDU protection, BPDU forward, DHCPv4 client, DHCPv6 client

Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz

Dimensions (WxDxH) 34.1 cm x 23.1 cm x 4.4 cm

Localisation United Kingdom

Manufacturer Warranty 5-year warranty

General

Device Type Switch - 28 ports - L3 Lite - Managed - stackable

Enclosure Type Desktop, rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 2 x 1/2.5/5/10GBase-T + 2 x 1 Gigabit / 10 Gigabit SFP+

Performance Switching fabric bandwidth: 128 Gbps ¦ Forwarding performance: 95.2 Mpps

MAC Address Table Size 16K entries

Jumbo Frame Support 12KB

Max Units In A Stack 4

Routing Protocol OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, MSDP, static IPv4 routing, static IPv6 routing, MLDv2, MLD

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SMTP, DHCP

Encryption Algorithm DES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, DSA, ECDSA, 128-bit AES, 192-bit AES, 256-bit AES, SHA-2, RNG, CCM, CMAC, GCM, XTS, DRBG, FIPS 180-1, FIPS 186, FIPS 46-3, HMAC

Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features ARP support, OCSP support, VLAN support, IGMP snooping, DiffServ support, MAC address filtering, DHCP snooping, TFTP support, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, UDLD, fanless, SNMP trap, MIB, MAC address lockout, GVRP, NAC, port isolation, MSDP, SFTP client, VoIP support, IP source guard, EPSRing, VCStack, BPDU, ICMP, SCP, AMF, BIST, Cable fault locator (TDR), DDM, NTP, Active Fiber Monitoring, AAA, IGMP querier, DNS client, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, UDP, VLAN Tagging, BPDU protection, BPDU forward, DHCPv4 client, DHCPv6 client

Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz

RAM 1 GB DDR3 SDRAM

Flash Memory 256 MB

Status Indicators Status

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 ¦ 2 x 1/2.5/5/10GBase-T uplink ¦ 2 x 1/10GBase-X SFP+

Power

Power Device Internal power supply

Miscellaneous

Compliant Standards EN 61000-3-2, NOM, EN 61000-3-3, FCC Part 15 B Class A, EAC, China RoHS, EN 55024:2010, EN 55032:2012+AC:2013 Class A, EN 55032 Class A, CISPR 32:2012 Class A, ICES-003:2016 issue 6 Class A, EU RoHS, AS/NZS CISPR32:2013 Class A, IEC/EN/UL 62368-1, EN 55035:2017, IEC/EN 60825-1, UKCA

Localisation United Kingdom

Software / System Requirements

Software Included Alliedware Plus

Dimensions & Weight

Width 34.1 cm

Depth 23.1 cm

Height 4.4 cm

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 5 - 95% (non-condensing)

Min Storage Temperature -20 °C

Max Storage Temperature 70 °C

Humidity Range Storage 5 - 95% (non-condensing)

Reviews

Read reviews

There are currently no reviews for this product

Be the first to add a review

Add a review

Accessories

ALLIED TELESIS

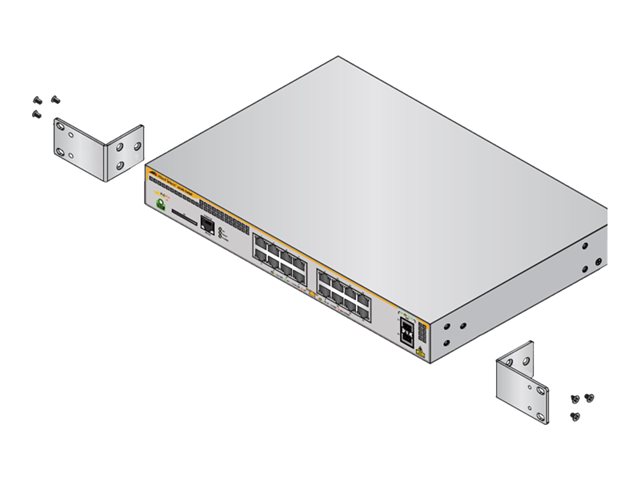

ALLIED TELESIS Allied Telesis AT-RKMT-J13 - Rack mounting kit - for AT x230, x330, CentreCOM AT-GS970EMX/20, GS970EMX/28, x230-18, x230-28, x230L-17, x330-28
