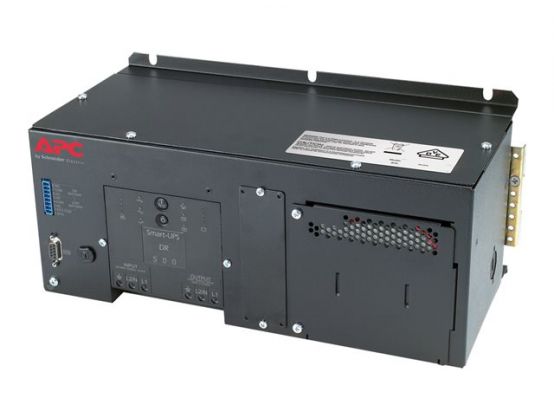

APC Industrial Panel and DIN Rail UPS with Standard Battery - UPS - 325 Watt - 500 VA
Manufacture#: SUA500PDRI-S
Checking delivery…
Product details
UPS (DIN rail mountable)
AC 220/230/240 V
325 Watt
500 VA
Payment options available at checkout
Main features
APC Industrial Panel and DIN Rail UPS with Standard Battery
UPS (DIN rail mountable)
AC 220/230/240 V
325 Watt
500 VA
RS-232
output connectors: 1
black
Overview
Proven Industrial UPS power protection for control applications and harsh environments.
Multiple mounting methods
Plug-and-Play external batteries
Automatic restart of loads after UPS shutdown
Automatic self-test
Cold-start capable
Power conditioning
Wide input voltage range
Intelligent battery management
LED indicators
Hot-swappable batteries
User-replaceable batteries
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Product Description
APC Industrial Panel and DIN Rail UPS with Standard Battery - UPS - 325 Watt - 500 VA
Device Type
UPS - DIN rail mountable
Weight
12.86 kg
Input Voltage
AC 220/230/240 V
Output Voltage
AC 220/230/240 V ± 5%
Power Capacity
325 Watt / 500 VA
Input Connectors
1
Output connectors
1 x hardwire 3-wire (1PH + N + G)
Battery
Lead Acid
Batteries Qty
1
Run Time (Up To)
8 min at full load
Networking
RS-232
Colour
Black
Dimensions (WxDxH)
36.2 cm x 17.1 cm x 14.8 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - DIN rail mountable
Colour
Black
Power Device
UPS Technology
Line interactive
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 160 - 285 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Required
50/60 Hz
Input Connectors
1
Power Output Connectors Details
1 x hardwire 3-wire (1PH + N + G)
Output Voltage
AC 220/230/240 V ± 5%
Power Capacity
325 Watt / 500 VA
Surge Suppression
Yes
Surge Energy Rating
540 Joules
Circuit Protection
Circuit breaker
Efficiency
94%
Battery
Quantity
1
Technology
Lead Acid
Run Time (Up To)
8 min at full load ¦ 24 min at half load
Recharge Time
2.5 hours
Networking
Remote Management Interface
RS-232
Expansion / Connectivity
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9)
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Miscellaneous
Compliant Standards
UL, UL 1449, RoHS, REACH
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Dimensions & Weight
Width
36.2 cm
Depth
17.1 cm
Height
14.8 cm
Weight
12.86 kg
Dimensions & Weight (Shipping)
Shipping Width
29.7 cm
Shipping Depth
29.7 cm
Shipping Height
48.1 cm
Shipping Weight
13.32 kg
