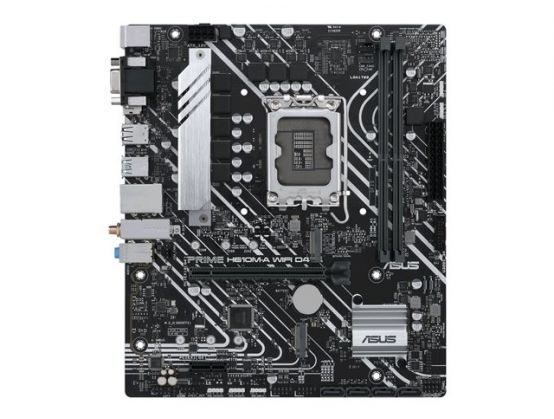

ASUS PRIME H610M-A WIFI D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
The ASUS PRIME H610M-A WIFI D4 motherboard is designed for performance and efficiency for the 12th Generation Intel Core, Pentium Gold, and Celeron processors. Its micro ATX form factor provides versatility, allowing it to fit in a variety of systems. With connectivity options, including DisplayPort, HDMI, and USB 3.2 Gen 2, this motherboard offers flexibility for a range of peripherals and displays. The audio capabilities are enhanced with high definition audio output, ensuring an immersive sound experience. This motherboard also supports dual-channel DDR4 SDRAM with speeds ranging from 2133 MHz to 3200 MHz, maximizing memory utilization and performance.
Network InterfacesGigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.0
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 2 x M.2
Interfaces1 x DisplayPort ¦ 1 x VGA ¦ 1 x HDMI ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3
Sleep / Wake UpWake on LAN (WOL), wake on PME
Hardware FeaturesIntel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, Q-DIMM, Q-Slot, ASUS Q-Design, VRM heatsink design, ASUS Aura Sync, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 2+, CrashFree BIOS 3, ASUS EZ DIY, jack retasking, audio jack detect technology, Preboot eXecution Environment (PXE)
Miscellaneous
Included AccessoriesASUS Wi-Fi moving aerial, I/O back plate, 1 x M.2 screw
Cables Included2 x Serial ATA cable
Software IncludedArmoury Crate, ASUS AURA Creator, ASUS AI Suite III, ASUS CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR
