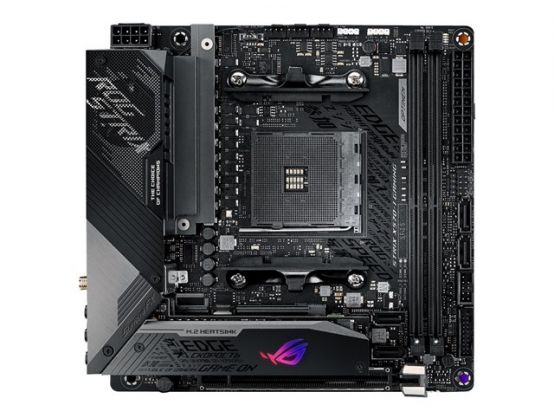

ROG Strix X570-I Gaming rises above the rest to deliver incredible power and undeniable style for your small form factor gaming build. ROG Strix X570-I Gaming is primed to deliver maximum gaming performance, while its revolutionary miniature active cooling design efficiently works to keep temperatures down.
Expansion Slots1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 2nd Generation Ryzen CPU); PCIe 3.0 x8 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics))
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Interfaces1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 3 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB-C Gen2 ¦ 1 x DisplayPort ¦ 1 x HDMI
Internal Interfaces2 x USB 2.0 - header ¦ 1 x speaker - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Features
BIOS TypeAMI
BIOS FeaturesWfM 2.0 support, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.2 support, ACPI 6.2 support
Sleep / Wake UpWake on LAN (WOL)
Hardware FeaturesASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), Dual Intelligent Processors 5, AURA RGB Lighting Control, ASUS Fan Xpert 4, Sonic Radar III, Sonic Studio III, ASUS Aura Sync, LED-illuminated audio jacks
Miscellaneous
Included AccessoriesExternal antenna, cable ties, 2 x M.2 screws, M.2 bracket, STRIX stickers, ROG thank you card, RGB Addressable LED extension cable
Cables Included4 x Serial ATA cable
Software IncludedDrivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus (OEM version), Overwolf, WinRAR, ASUS ROG RAMCache III, ROG GameFirst V, Sonic Studio Virtual Mixer
