General
Product Type

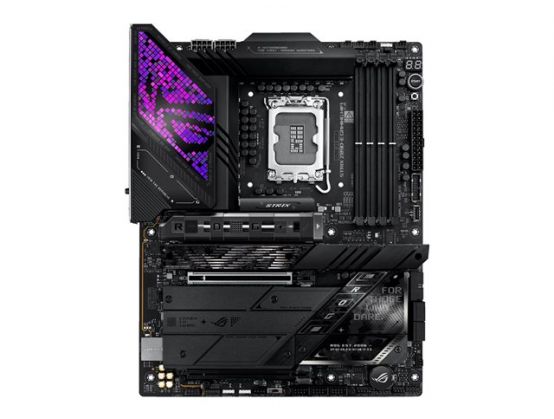

Motherboard - ATX
Chipset Type
Intel Z890
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Supported RAM
Max Size
192 GB
Technology
DDR5
Bus Clock
4400 MHz (O.C.), 4600 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technology
Audio
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (ALC4080)
Compliant Standards
High Definition Audio, Dolby Atmos
LAN
Network Interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 3 x M.2 socket (2280 M.2 slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
2 x Thunderbolt 4/DisplayPort/USB4 ¦ 7 x USB 3.2 Gen 2 ¦ 2 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x aerial ¦ 1 x DisplayPort ¦ 1 x SPDIF out
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 6 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt 4 - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, CUDIMM support, DIY Friendly Design, AI Cooling II, VRM heatsink design, M.2 heatsink, M.2 heatsink backplate, LANGuard, BIOS FlashBack button, Clear CMOS Button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, ASUS SafeSlot, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, BIOS FlashBack LED, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Slot, CrashFree BIOS 3, Preboot eXecution Environment (PXE), AI Overclocking, AI Networking II, NPU Boost, 18+1+2+2 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) III, Polymo Lighting, 8 Layer PCB
Miscellaneous
Included Accessories
Thermal pad for M.2 SSD, 2 x M.2 Q-Slides, 7 x M.2 rubbers, ASUS Wi-Fi Q-antenna, cable ties, M.2 Q-Latch, ROG key chain, ROG Strix sticker
Cables Included
2 x SATA Express cable
Software Included
Adobe Creative Cloud (free trial), AIDA64 Extreme (60 days trial), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60 days trial), ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
Compliant Standards
DisplayPort 1.4
Width
30.5 cm
Depth
24.4 cm
