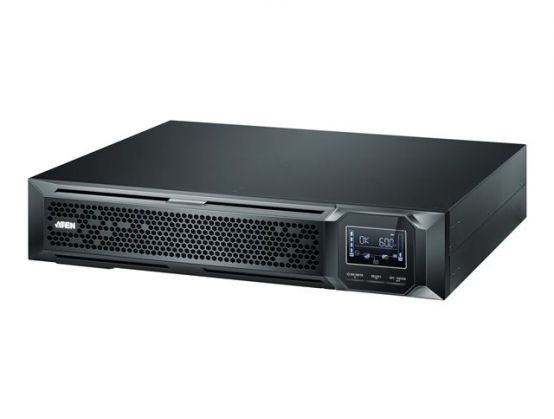

ATEN Professional OL2000HV - UPS - 2000 Watt - 2000 VA
Checking delivery…
Product details
UPS (rack-mountable / external)
AC 220/230/240 V
2000 Watt
2000 VA
Payment options available at checkout
Main features
ATEN Professional OL2000HV
UPS (rack-mountable / external)
AC 220/230/240 V
2000 Watt
2000 VA
9 Ah
RS-232, USB
output connectors: 8
2U
Overview
The ATEN Professional UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
True double-conversion capability
Output voltage regulation
Programmable power management outlets
Hot-swappable battery design
Product Description
ATEN Professional OL2000HV - UPS - 2000 Watt - 2000 VA
Device Type
UPS - rack-mountable / external
Rack Size
2U
Weight
20.7 kg
Input Voltage
AC 220/230/240 V
Output Voltage
AC 220/230/240 V ± 5%
Power Capacity
2000 Watt / 2000 VA
Input Connectors
1 x power IEC 60320 C20
Output connectors
8 x power IEC 60320 C13
Battery
Lead Acid - 9 Ah
Batteries Qty
4
Run Time (Up To)
2.95 min at full load
Networking
RS-232, USB
Remote Management Protocol
SNMP
Dimensions (WxDxH)
43.8 cm x 51 cm x 8.8 cm
General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Power Device
UPS Technology
On-line
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 110 - 300 V
Frequency Provided
50/60 Hz ± 3Hz
Input Voltage Margin
± 5%
Frequency Required
40 - 70 Hz
Input Connectors
1 x power IEC 60320 C20
Power Output Connectors Details
8 x power IEC 60320 C13
Output Voltage
AC 220/230/240 V ± 5% - 50/60 Hz
Max Electric Current
9.7 A
Power Capacity
2000 Watt / 2000 VA
Dataline Surge Protection
Network/phone line - RJ-45 - 1 input line / 1 output line
Output Waveform
Sinewave
Surge Suppression
Yes
Efficiency
96%+ Eco mode, 89%+ Battery mode, 90%+ AC mode
Power Factor (PF)
0.99
Battery
Quantity
4
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
2.95 min at full load ¦ 10 min at half load
Recharge Time
3 hours
Transfer Time
0 ms
Features
Sealed
Networking
Remote Management Interface
RS-232, USB
Remote Management Protocol
SNMP
Expansion / Connectivity
Interfaces
1 x management (RS-232) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off)
Miscellaneous
Cables Included
3 x power cable - external ¦ USB cable - external ¦ Serial cable - external
Rack Mounting Kit
Included
Features
LCD display, hot-swappable batteries
Compliant Standards
RoHS
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 90% (non-condensing)
Dimensions & Weight
Width
43.8 cm
Depth
51 cm
Height
8.8 cm
Weight
20.7 kg
