for AXIS Q6032-E, Q6034-E, Q6035-E, Q6042-E, Q6044-E, Q6045-E; Q60 Series
Overview
Outdoor recessed designed for AXIS Q60-E PTZ cameras in roof overhangs/soffits. It is made of aluminum and stainless steel and it supports both safety standards and the impact resistance of the camera. It also offers two 3/4" conduit holes for a plenum and/or rodent safe installation.

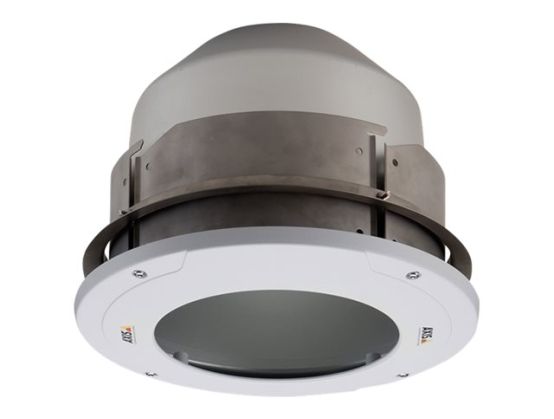

Product DescriptionAXIS T94A01L Recessed Mount - camera mounting bracket
Product TypeCamera mounting bracket
Product MaterialStainless steel, aluminium
Dimensions (WxDxH)29 cm x 29 cm x 22.8 cm
Weight2.36 kg
ColourWhite
Compliant StandardsRoHS, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60529 IP44, REACH, IEC 62262 IK10, IEC 60950-22, EN 60529, EN 60950-22, UL 60950-22
Manufacturer Warranty3-year warranty
Designed ForAXIS Q6032-E PTZ Dome Network Camera, Q6034-E PTZ Dome Network Camera, Q6035-E PTZ Dome Network Camera, Q6042-E PTZ Dome Network Camera, Q6044-E PTZ Dome Network Camera, Q6045-E PTZ Dome Network Camera, Q6045-E PTZ Dome Network Camera 60Hz; Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz
Extended Specification
General
Product TypeCamera mounting bracket
Product MaterialStainless steel, aluminium
Width29 cm
Depth29 cm
Height22.8 cm
Weight2.36 kg
ColourWhite
Miscellaneous
Compliant StandardsRoHS, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60529 IP44, REACH, IEC 62262 IK10, IEC 60950-22, EN 60529, EN 60950-22, UL 60950-22
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Environmental Parameters
Min Operating Temperature-50 °C
Max Operating Temperature50 °C
Compatibility Information
Designed ForAXIS Q6032-E PTZ Dome Network Camera, Q6034-E PTZ Dome Network Camera, Q6035-E PTZ Dome Network Camera, Q6042-E PTZ Dome Network Camera, Q6044-E PTZ Dome Network Camera, Q6045-E PTZ Dome Network Camera, Q6045-E PTZ Dome Network Camera 60Hz ¦ AXIS Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz
