Name: DeckLink Quad HDMI Recorder Silver
Brand: Blackmagic
SKU: 1TENTRMM-004987
Price: 496.94 GBP
Availability: InStock

Overview

Main features

Blackmagic DeckLink Quad HDMI Recorder
Video capture adapter
PCIe 3.0 x8
NTSC, PAL

Overview

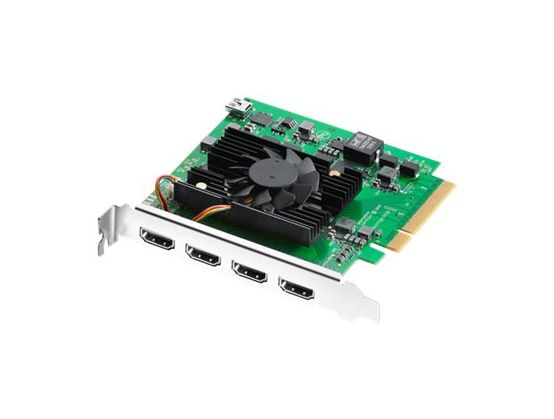

DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!

Specification

Product Description Blackmagic DeckLink Quad HDMI Recorder - video capture adapter - PCIe 3.0 x8

Device Type Video capture adapter

Interface Type PCIe 3.0 x8

Dimensions (WxDxH) 10.9 cm

Weight 128 g

Video Input HDMI input

Video Modes 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 625/50p, 2160/24p, 2160/25p, 2160/30p, 2160/50p, 2160/60p, 4096/24p, 4096/50p, 4096/60p, 1080/59.94i, 1080/59.94p, 720/59.94p, 4096/30p, 1080/23.98p, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 4096/25p, 4096/23.98p, 4096/29.97p, 4096/59.94p, 525/59.94i, 2160/59.94p

Analogue Video Format NTSC, PAL

Video Compression Format YUV 4:2:0, YUV 4:2:2, YUV 4:4:4

Digital Video Format MPEG-2, DV, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DNxHD, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes 422 Proxy, ProRes 422 LT, DNxHR

Digital Video Capture Resolution 1280 x 720, 640 x 480, 1600 x 1200, 1440 x 1080, 800 x 600, 1920 x 1440, 1920 x 1080, 2560 x 1440, 2560 x 1600, 1920 x 1200, 1440 x 900, 4096 x 2160

Audio Input Support Standard

Sound Input Mode 24-bit - max sample rate: 48 kHz

Features High Dynamic Range (HDR)

OS Required Linux, Windows 8.1 / 10 (64 bits), Apple macOS Catalina 10.15, Apple macOS Big Sur 11.1

Manufacturer Warranty 3-year warranty

General

Device Type Video capture adapter

Interface Type PCIe 3.0 x8

Depth 10.9 cm

Weight 128 g

Video

Interface Type HDMI input

Video Modes 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 625/50p, 2160/24p, 2160/25p, 2160/30p, 2160/50p, 2160/60p, 4096/24p, 4096/50p, 4096/60p, 1080/59.94i, 1080/59.94p, 720/59.94p, 4096/30p, 1080/23.98p, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 4096/25p, 4096/23.98p, 4096/29.97p, 4096/59.94p, 525/59.94i, 2160/59.94p

Analogue Video Format NTSC, PAL

Video Compression Format YUV 4:2:0, YUV 4:2:2, YUV 4:4:4

Digital Video Format MPEG-2, DV, DVCPRO50, AVCHD, HDV, DVCPRO HD, AVC-Intra, ProRes 422, DNxHD, DPX, XDCAM EX, XDCAM HD, XDCAM HD422, ProRes 4444, ProRes 422 HQ, ProRes 422 Proxy, ProRes 422 LT, DNxHR

Digital Video Capture Resolution 1280 x 720, 640 x 480, 1600 x 1200, 1440 x 1080, 800 x 600, 1920 x 1440, 1920 x 1080, 2560 x 1440, 2560 x 1600, 1920 x 1200, 1440 x 900, 4096 x 2160

Audio Input Support Standard

Audio Sampling Format Stereo 24-bit / 48 kHz

Features High Dynamic Range (HDR)

Audio Input

Data Width 24-bit

Max Sample Rate 48 kHz

Expansion / Connectivity

Interfaces 4 x audio / video - HDMI input - 19 pin HDMI Type A

Compatible Slots 1 x PCI Express 3.0 x8

Power

Power Consumption Operational 23 Watt

Software / System Requirements

Software Included Drivers & Utilities, Blackmagic Media Express, Blackmagic Disk Speed Test, Blackmagic Desktop Video Utility

OS Required Linux, Windows 8.1 / 10 (64 bits), Apple macOS Catalina 10.15, Apple macOS Big Sur 11.1

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 40 °C

Humidity Range Operating 0 - 90% (non-condensing)
