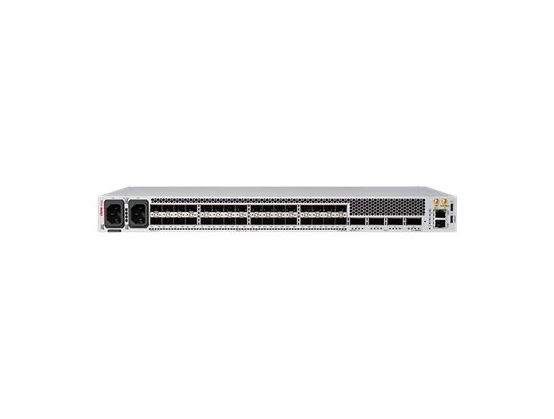

Name: Ciena 5164 - Router 25GbE, 100GbE, 200GbE - rack-mountable
Brand: CIENA
SKU: 1TNETNHS-052906
Price: 5310.2 GBP
Availability: OutOfStock

Overview

Main features

Ciena 5164
Router 100GbE, 25GbE, 200GbE
rack-mountable

Overview

Ciena's 5164 Router is purpose-built for 5G networks that converge 4G/5G fronthaul, midhaul, and backhaul (xHaul) networks onto a common, simpler infrastructure. With dense 1/10/25GbE to 100/200GbE aggregation and support for both hard network slicing (FlexEthernet) and soft network slicing (Segment Routing), the temperature-hardened 5164 is the ideal platform to simplify and de-risk the unique 4G to 5G journeys of mobile and wholesale operators.

Specification

Product Description Ciena 5164 - router - rack-mountable

Device Type Router

Enclosure Type Rack-mountable - 1U

Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 200 Gigabit Ethernet

Jumbo Frame Support 9216 bytes

Network / Transport Protocol TCP/IP, NTP, DHCP, DHCPv6, SFTP, IPv4, IPv6

Routing Protocol OSPF, BGP-4, IS-IS, BGP, OSPFv2, Multiprotocol BGP, MPLS

Remote Management Protocol SNMP 2, CLI, NETCONF, SFTP, OAM, NTP, IPv4, IPv6, YANG

Features Layer 3 switching, Layer 2 switching, IP-routing, MPLS support, VLAN support, Syslog support, DoS attack prevention, ACL support, QoS, LACP support, LLDP support, DHCP relay, LACP, DHCP client, CoS, VPLS, LDP, EVPN, SDN, AAA, NTP client, CFM, H-VPLS, L2VPN support, EVC, Q-in-Q tunnelling, LAG, static LSPs, TI-LFA, built-in GNSS receiver, EVPN VPWS, DHCPv6 client, SZTP, Stratum 3E oscillator

Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1AX, ITU-T Y.1731, IEEE 1588v2, ITU-T G.8264, IEEE 802.3by, ITU-T G.8262, ITU-T G.8275.1, ITU-T Y.1564, IEEE 802.3bs, ITU-T G.703, ITU-T G.8273.2, ITU-T G.8275.2, IEEE 802.3-2018

Power AC 100-240 V

Dimensions (WxDxH) 44.1 cm x 25.3 cm x 4.4 cm

Weight 5.2 kg

General

Device Type Router

Enclosure Type Rack-mountable - 1U

Connectivity Technology Wired

Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 200 Gigabit Ethernet

Jumbo Frame Support 9216 bytes

Network / Transport Protocol TCP/IP, NTP, DHCP, DHCPv6, SFTP, IPv4, IPv6

Routing Protocol OSPF, BGP-4, IS-IS, BGP, OSPFv2, Multiprotocol BGP, MPLS

Remote Management Protocol SNMP 2, CLI, NETCONF, SFTP, OAM, NTP, IPv4, IPv6, YANG

Encryption Algorithm TLS

Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), RADSEC

Features Layer 3 switching, Layer 2 switching, IP-routing, MPLS support, VLAN support, Syslog support, DoS attack prevention, ACL support, QoS, LACP support, LLDP support, DHCP relay, LACP, DHCP client, CoS, VPLS, LDP, EVPN, SDN, AAA, NTP client, CFM, H-VPLS, L2VPN support, EVC, Q-in-Q tunnelling, LAG, static LSPs, TI-LFA, built-in GNSS receiver, EVPN VPWS, DHCPv6 client, SZTP, Stratum 3E oscillator

Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1AX, ITU-T Y.1731, IEEE 1588v2, ITU-T G.8264, IEEE 802.3by, ITU-T G.8262, ITU-T G.8275.1, ITU-T Y.1564, IEEE 802.3bs, ITU-T G.703, ITU-T G.8273.2, ITU-T G.8275.2, IEEE 802.3-2018, NEBS level 3, ICES-003 Class A, EN 60950-1, IEC 60825-1, FCC Part 15 B Class A, IEC 60825-2, VCCI Class A, WEEE 2012/19/EU, ANSI/UL 60950-1 Second Edition, RoHS 2 (2011/65/EU), ETSI EN 301 489-1, EN 55032, CISPR 32 Class A, EN 301 489-19, UL 62368-1, EN 55035, ITU-T G.703, ETSI EN 300 019-2-1, ETSI EN 300 019-2-2, ITU-T G.8264, ITU-T G.8275.1, ITU-T G.8275.2, EN 303 413, ETSI EN 300 386, GR-1089, Issue 6, ETSI EN 300 132-2, ETSI EN 300 132-3, ITU-T G.8262, CAN/CSA 62368-1, CAN/CSA C22.2 No. 60950-1, GR-3108-CORE class 2, GR-63-CORE, Issue 5, ITU-T G.8273.2 Class C, EN 62368-1:2014/A11:2017, CISPR 24 Class A, CISPR 35 Class A, ETSI EN 300 119-3, ETSI EN 300 019-3-3

Expansion / Connectivity

Interfaces 32 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet - SFP28 ¦ 4 x 100Gb Ethernet / 200Gb Ethernet - QSFP28/QSFP56 ¦ USB: 1 x 24 pin USB-C ¦ Console: 1 x 24 pin USB-C ¦ Synchronization: 1 x RJ-45 ¦ Antenna: 1 x ¦ Management: 1 x RJ-45

Power

Power Device Internal power supply

Power Redundancy Yes

Installed Qty 2 (installed) / 2 (max)

Voltage Required AC 100-240 V

Dimensions & Weight

Width 44.1 cm

Depth 25.3 cm

Height 4.4 cm

Weight 5.2 kg

Environmental Parameters

Min Operating Temperature -40 °C
