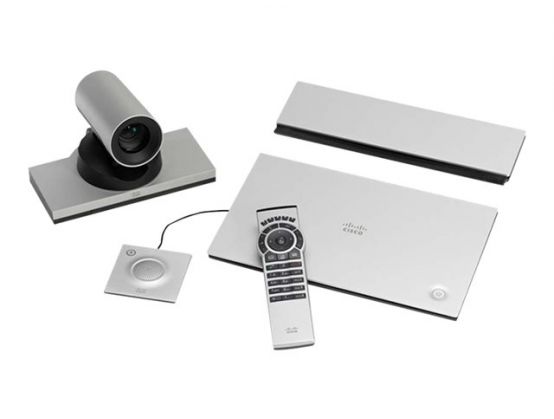

Cisco TelePresence System SX20 Quick Set with Precision HD 1080p 12x Camera
Video conferencing kit
remanufactured
Overview
The Cisco TelePresence SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek and powerful telepresence system. The SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The SX20 Quick Set supports embedded capability for multipoint support with Cisco TelePresence MultiSite technology, enabling users to add three additional participants to a telepresence call.¦SX20 Quick Set combines a powerful codec, three camera choices, and a dual-display option in an easy-to-deploy and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact and feature-rich package. Cisco TelePresence SX20 Quick Set is designed to truly extend the power of in-person to everyone, everywhere.
Transforms a flat panel display into a 1080p high-definition meeting space
Intuitive connections make setup as easy as connecting a DVD player
Provides up to 1080p60 resolution - compatible with standards-based video without loss of features
Sleek, compact design
Multimedia and presentations can be shared at the touch of a button
High-definition content sharing up to 1080p15 resolution
One button to push (OBTP) to start a meeting
H.323/SIP calls up to 6 Mbps
Built-in individually transcoded multipoint conferencing offers ability to add three additional participants
Product DescriptionCisco TelePresence System SX20 Quick Set with Precision HD 1080p 12x Camera - video conferencing kit
Device TypeVideo conferencing kit
Digital Signaling ProtocolH.323, SIP
Data Compression ProtocolG.711, G.722, H.263, H.264, H.263+, G.722.1
Video InputDigital video camera - HD-SDI output, HDMI output
Video OutputCodec board
Audio InputMicrophone
Input DeviceRemote control (wireless)
NetworkingNetwork adapter - Ethernet, Fast Ethernet, Gigabit Ethernet
PowerAC 120/230 V (50/60 Hz)
Pricing TypeRemanufactured
Manufacturer Warranty90 days warranty
Extended Specification
General
Device TypeVideo conferencing kit
Dimensions & Weight DetailsMain system - Width 30 cm Depth 18 cm Height 3.4 cm Weight 1.4 kg
Modem
Digital Signaling ProtocolH.323, SIP
Data Compression ProtocolG.711, G.722, H.263, H.264, H.263+, G.722.1
Video Input
TypeDigital video camera (colour) - external
Interface TypeHD-SDI output, HDMI output
Digital Video Capture Resolution1280 x 720, 1920 x 1080
Video Output
TypeCodec board - external
Supported Display GraphicsVGA (640x480), XGA (1024x768), SVGA (800x600), HDTV (1920x1080), HD (1280 x 720), 1280x768, 1024x576, 704x576
Digital Video StandardHigh-Definition Multimedia Interface (HDMI)
Audio Input
TypeMicrophone - external
Input Device
TypeRemote control
Connectivity TechnologyWireless
Networking
TypeNetwork adapter
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network / Transport ProtocolTCP/IP, NTP, DHCP, DNS
Expansion / Connectivity
Interfaces2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 2 x microphone - input - mini-phone 3.5 mm 4-pole ¦ 1 x audio - input - mini-phone 3.5 mm ¦ 1 x display / video - input - DVI ¦ 1 x display / video - input - 19 pin HDMI Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x USB
Miscellaneous
Compliant StandardsEN55022 Class B, FCC Part 15 B, EN 60950-1, CSA C22.2 No. 60950-1-07
Pricing TypeRemanufactured
Power
Power DevicePower supply
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Consumption Operational40 Watt
Software / System Requirements
Software IncludedCisco Collaboration Endpoint 8
Manufacturer Warranty
Service & SupportLimited warranty - 90 days ¦ Limited warranty - advance parts replacement - 10 days
