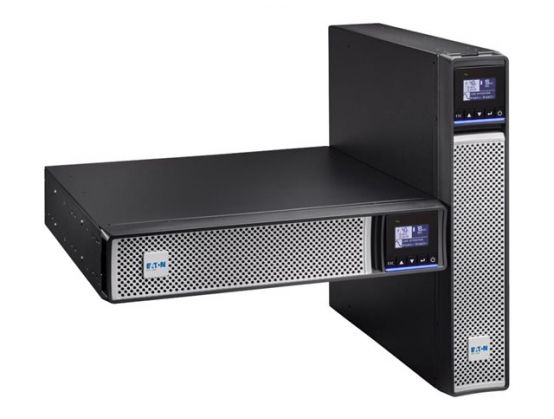

Eaton 5PX 1000i RT2U G2
Manufacture#: 5PX1000IRT2UG2BS
Checking delivery…
Product details
UPS (rack-mountable / external)
1000 Watt
1000 VA
RS-232, USB
Payment options available at checkout
Main features
Eaton 5PX G2
UPS (rack-mountable / external)
1000 Watt
1000 VA
RS-232, USB
output connectors: 8
2U
Overview
The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximizing IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.
Product Description
Eaton 5PX G2 - UPS - 1000 Watt - 1000 VA
Device Type
UPS - rack-mountable / external
Rack Size
2U
Weight
19.6 kg
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10%
Power Capacity
1000 Watt / 1000 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
8 x power IEC 60320 C13
Run Time (Up To)
8 min at 80% load
Networking
RS-232, USB
Included Accessories
Tower stand
Dimensions (WxDxH)
43.8 cm x 44.8 cm x 8.55 cm
Environmental Standards
ENERGY STAR
Manufacturer Warranty
3-year warranty
General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Power Device
UPS Technology
Line interactive
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Provided
50/60 Hz ± 0.1Hz
Frequency Required
47 - 70 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
8 x power IEC 60320 C13
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Power Capacity
1000 Watt / 1000 VA
Output Waveform
Sinewave
Battery
Run Time (Up To)
30 min at 300 Watts ¦ 17 min at 500 Watts ¦ 8 min at 800 Watts
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included Accessories
Tower stand
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, hot-swappable batteries
Compliant Standards
IEC 62443-4-2, UL 2900-1, EN 62040-1, IEC 62040-1, CSA 22.2, UL 1778, EN 62040-2, IEC 62040-2, CISPR 22 Class B, FCC Class B certified, CB, TUV, cTUVus, EAC, UKCA
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
40 dBA
Dimensions & Weight
Width
43.8 cm
Depth
44.8 cm
Height
8.55 cm
Weight
19.6 kg
Read reviews
There are currently no reviews for this product
Be the first to add a review
Add a review
Accessories
Jump to Category
EATON

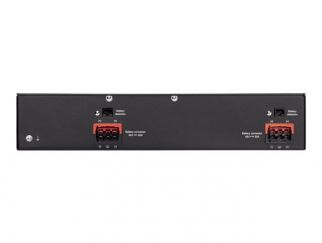

UPS Batteries
