Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
Win 10 IoT Enterprise 2021 LTSC
monitor: LED 23.8" 1920 x 1080 (Full HD) @ 60 Hz touchscreen
black
Overview

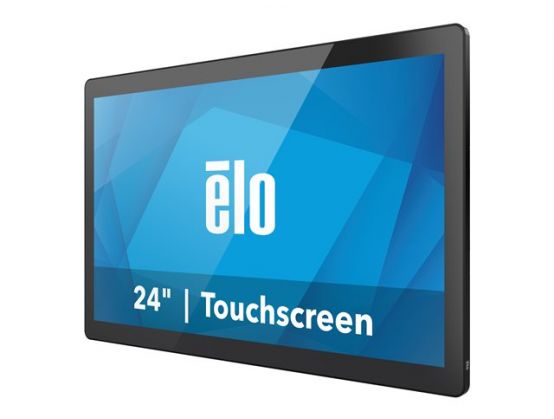

Elo's I-Series 3 with Intel AiO Interactive Display delivers reliable, enterprise-grade security and performance powered advanced processors. Designed with a sleek and durable fixed tablet form factor, the I-Series offers models that support Windows, ChromeOS Flex and Linux. The I-Series offers a modular platform designed with the durability needed to survive continuous public use.
10-point multi-touch screen with TouchPro PCAP technology
Intel Core i3 processor with turbo boost up to 4.4 GHz
8 GB of DDR5 RAM for efficient multitasking
Comprehensive connectivity with Gigabit Ethernet, Bluetooth 5.2, and USB 3.0
ENERGY STAR certified for energy efficiency
Innovative touch technologyEquipped with TouchPro Pro Projected Capacitive (PCAP) technology, the Elo I-Series 3 offers a responsive 10-point multi-touch experience, making interactions seamless and intuitive.Powerful performanceAt the heart of the Elo I-Series 3 is an Intel Core i3 processor with a clock speed of 1.2 GHz and a turbo boost up to 4.4 GHz. Combined with 8 GB of DDR5 RAM, it delivers reliable performance for demanding applications.Versatile connectivityThis all-in-one device boasts a wide range of connectivity options including Gigabit Ethernet, Bluetooth 5.2, and multiple USB 3.0 ports, ensuring easy integration into any setup.Robust security featuresWith the Trusted Platform Module (TPM 2.0) security chip, the Elo I-Series 3 provides a secure computing environment, protecting sensitive data and information.Sleek and durable designFeaturing a flat front bezel and an all-in-one form factor, the Elo I-Series 3 is not only stylish but also built to withstand the rigors of continuous public use.
Max Turbo Speed4.4 GHz (P-core) / 2.5 GHz (E-core)
Number of Cores6-core
CPU Qty1
Max CPU Qty1
Processor Main FeaturesIntel Turbo Boost Technology 2
Cache Memory
Installed Size10 MB
Cache Per Processor10 MB
RAM
Installed Size8 GB (installed) / 32 GB (max)
TechnologyDDR5 SDRAM
Effective Memory Speed4800 MHz
Rated Memory Speed4800 MHz
Form FactorSO-DIMM 262-pin
Slots2 (Total) / 1 (empty)
Configuration Features1 x 8 GB
Hard Drive
TypeSSD - M.2
Capacity1 x 128 GB
Interface TypePCI Express
SSD Endurance80 TB
FeaturesNVM Express (NVMe)
Optical Storage
TypeNo optical drive
Monitor
Monitor TypeLED
TouchscreenYes (10-point multi-touch)
Diagonal Size23.8"
Native Resolution1920 x 1080 (Full HD)
V-Sync Rate at Max Res.60 Hz
Widescreen DisplayYes
Image Aspect Ratio16:9
Horizontal Viewing Angle+89 / -89
Vertical Viewing Angle+89 / -89
Response Time16 ms
Image Brightness250 cd/m²
Image Contrast Ratio1000:1
Monitor FeaturesTouchPro Pro Projected Capacitive (PCAP) technology, 16.7 million colour depth, Zero-Bezel Design, anti-glare
Graphics Controller
Graphics ProcessorIntel UHD Graphics
Audio Output
Sound Output ModeStereo
Speakers Included2 x right / left channel
Networking
Wireless LAN SupportedYes
Data Link ProtocolIEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
Expansion / Connectivity
Interfaces1 x headphones/microphone ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 ¦ 4 x USB 2.0 - micro-USB ¦ 1 x PoweredUSB (24 V) ¦ 2 x PoweredUSB (12 V) ¦ 1 x serial - RJ-50 (powered) ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging)
Miscellaneous
Included AccessoriesMount screw, cable tie
Cables IncludedRJ-50 to DB-9 cable
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
