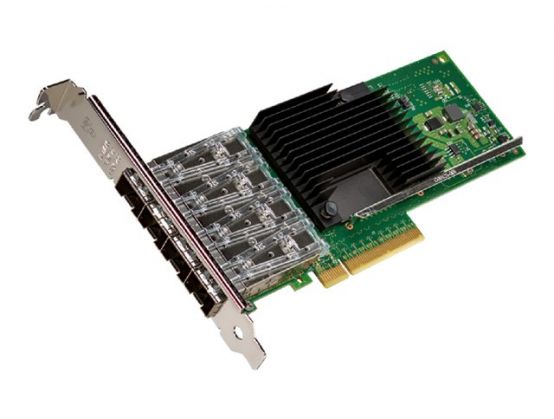

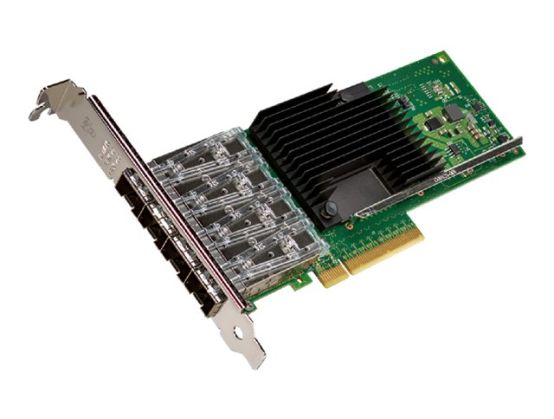

The X710 adapter family addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.
System RequirementsMicrosoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Ubuntu 20.04 LTS, Microsoft Windows Server 2022, Debian 11, Microsoft Windows 10 / 11, Ubuntu 22.04 LTS, SUSE Linux Enterprise Desktop 12 SP5, SUSE Linux Enterprise Desktop 15 SP5, Red Hat Linux 8.8, Red Hat Linux 9.2, FreeBSD 12.4, FreeBSD 13.1
Manufacturer WarrantyLimited lifetime warranty
Extended Specification
General
Device TypeNetwork adapter
Form FactorPlug-in card
Interface (Bus) TypePCI Express 3.0 x8
Networking
Ports10 Gigabit SFP+ x 4
Connectivity TechnologyWired
Cabling TypeTwinaxial
Data Link Protocol10 Gigabit Ethernet
Data Transfer Rate10 Gbps
Network / Transport ProtocolTCP/IP, UDP/IP
Remote Management ProtocolSNMP, RMON
Status IndicatorsPort transmission speed, link/activity
FeaturesFlow control, VLAN support, packet filtering, IPv6 support, TCP/IP offloading, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), IPv4 support, PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, up to 10m transmission distance
Compliant StandardsIEEE 802.1as
Expansion / Connectivity
Interfaces4 x 10Gb Ethernet - SFP+
Miscellaneous
Compliant StandardsFCC Class A certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC, Directive 2011/65/EU
Software / System Requirements
OS RequiredMicrosoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Ubuntu 20.04 LTS, Microsoft Windows Server 2022, Debian 11, Microsoft Windows 10 / 11, Ubuntu 22.04 LTS, SUSE Linux Enterprise Desktop 12 SP5, SUSE Linux Enterprise Desktop 15 SP5, Red Hat Linux 8.8, Red Hat Linux 9.2, FreeBSD 12.4, FreeBSD 13.1
