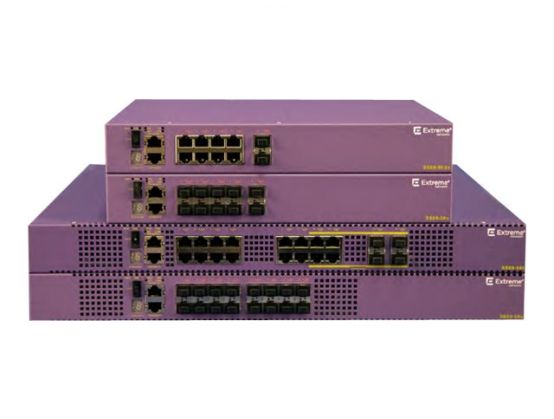

Name: Extreme Networks ExtremeSwitching X620 X620-10x-Base - switch - 10 ports - rack-mountable
Brand: EXTREME NETWORKS
SKU: 1TCPTCOM-033045
Price: 3290.96 GBP
Availability: OutOfStock

Overview

Main features

Extreme Networks ExtremeSwitching X620 X620-10x-Base
Switch
L3
10 x 10 Gigabit SFP+
side to side airflow
rack-mountable

Overview

The ExtremeSwitching X620 product family is a compact 10Gb Ethernet switch for 10Gb Edge applications in a small form factor. ExtremeSwitching X620 supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4 / IPv6 routing including policy-based switching / routing, Provider Bridges, bidirectional ingress and egress Access Control Lists, and bandwidth control both for ingress and egress.

SummitStack-V flexible stacking
Integrated web-based management
Advanced command line interface
10GBase-T and fiber connectivity

Specification

Product Description Extreme Networks ExtremeSwitching X620 X620-10x-Base - switch - 10 ports - rack-mountable

Device Type Switch - 10 ports - L3 - stackable

Enclosure Type Side to side airflow rack-mountable 1U

Subtype 10 Gigabit Ethernet

Ports 10 x 10 Gigabit SFP+

Performance Switching capacity: 200 Gbps ¦ Latency (10 Gbps): 2.4 µs

Capacity IPv4 forwarding table entries: 480 ¦ IPv4 hosts: 1500 ¦ IPv6 forwarding table entries: 240 ¦ IPv6 hosts: 1500 ¦ IPv4 routes (Multicast): 256 ¦ VLANs supported: 4092 ¦ Load-sharing groups: 128 ¦ ACL entries (ingress): 2048 ¦ ACL entries (egress): 512 ¦ QoS hardware queues per port: 8 ¦ Policies: 63

MAC Address Table Size 16K entries

Jumbo Frame Support 9216 bytes

Features Data Center Bridging Exchange (DCBX) support, enhanced transmission selection, Access Control List (ACL) support, Quality of Service (QoS), 2MB packet buffer, hot swappable fan, Priority-Based Flow Control (PFC), Software Defined Networking (SDN)

Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz

Power AC 120/230 V (50 - 60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 30.48 cm x 26.2 cm x 4.3 cm

Weight 2.74 kg

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 10 ports - L3 - stackable

Enclosure Type Side to side airflow rack-mountable 1U

Subtype 10 Gigabit Ethernet

Ports 10 x 10 Gigabit SFP+

Performance Switching capacity: 200 Gbps ¦ Latency (10 Gbps): 2.4 µs

Capacity IPv4 forwarding table entries: 480 ¦ IPv4 hosts: 1500 ¦ IPv6 forwarding table entries: 240 ¦ IPv6 hosts: 1500 ¦ IPv4 routes (Multicast): 256 ¦ VLANs supported: 4092 ¦ Load-sharing groups: 128 ¦ ACL entries (ingress): 2048 ¦ ACL entries (egress): 512 ¦ QoS hardware queues per port: 8 ¦ Policies: 63

MAC Address Table Size 16K entries

Jumbo Frame Support 9216 bytes

Features Data Center Bridging Exchange (DCBX) support, enhanced transmission selection, Access Control List (ACL) support, Quality of Service (QoS), 2MB packet buffer, hot swappable fan, Priority-Based Flow Control (PFC), Software Defined Networking (SDN)

Compliant Standards IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz

Processor : 1 GHz

RAM 1 GB DDR3 SDRAM

Flash Memory 4 GB

Expansion / Connectivity

Interfaces 10 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45

Power

Power Device Internal power supply

Installed Qty 1

Power Redundancy Optional

Power Provided 100 Watt

Voltage Required AC 120/230 V (50 - 60 Hz)

Power Consumption Operational 36 Watt

Features Redundant Power System (RPS) connector

Miscellaneous

Compliant Standards CISPR 24, EN 61000-3-2, IEC 61000-4-3, IEC 61000-4-4, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, FCC, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, KCC, WEEE, IEC 60825-1, ETS 300 753, CDRH, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, China RoHS, EN 300 386 V1.4.1, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, RCM, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, AS/NZS CISPR22:2006 Class A, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-11:2004, ETS300019-2-3, WEEE 2012/19/EU, FCC CFR47 Part 15 A, ACMA, ETS 300 019-2-1 Class 1.2, ETS 300 019-2-2 Class 2.3, EN 55022:2006+A1:2007

Software / System Requirements

Software Included ExtremeXOS Edge

Dimensions & Weight

Width 30.48 cm

Depth 26.2 cm

Height 4.3 cm

Weight 2.74 kg

Manufacturer Warranty

Service & Support Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C
