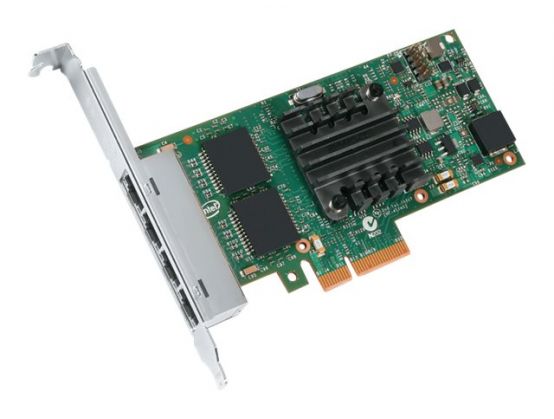

FUJITSU PLAN CP Intel I350-T4 - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 4

Name: FUJITSU PLAN CP Intel I350-T4 - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 4
Brand: FUJITSU
SKU: 1TCPTIOC-002356
Price: 321.78 GBP
Availability: InStock

SKU

1TCPTIOC-002356

Manufacture#: S26361-F4610-L504

Be the first to review this product

£268.15

£321.78 inc VAT

Checking delivery…

Product details

Network adapter
PCIe 2.1 x4 low profile
Gigabit Ethernet x 4
for PRIMERGY CX2550 M5, CX2560 M5, RX2520 M5, RX2530 M5, RX2530 M6, RX2540 M6, TX2550 M5

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

FUJITSU PLAN CP Intel I350-T4
Network adapter
PCIe 2.1 x4 low profile
Gigabit Ethernet x 4
for PRIMERGY CX2550 M5, CX2560 M5, RX2520 M5, RX2530 M5, RX2530 M6, RX2540 M6, TX2550 M5

Overview

Trust the network communication of the Ethernet LAN adapter. The Intel I350-T4 Ethernet LAN adapter, based on the Intel 1GbE LAN Powerville chip, offers four Gigabit Ethernet ports for 10/100/1000BaseT.

Based on the Intel 1 GbE LAN Powerville I350 -AM4 chip
Power management such as Ethernet Efficient Ethernet (EEE) and DMA Coalescing (DMAC) support
10/100/1000 Mbps
Virtualization support via VMDq and SR-IOV

Based on the Intel 1 GbE LAN Powerville I350 AM4 chip Industry-leading, energy-efficient is designed for next-generation 1 Gigabit performance and multi-core processors. Power management such as Ethernet Efficient Ethernet (EEE) and DMA Coalescing (DMAC) support This contributes to increased efficiency and reduces power consumption. 10/100/1000 Mbps Automatically compatible with Ethernet, fast Ethernet, and Gigabit Ethernet networks. Virtualization support via VMDq and SR-IOV Multi-port cards provide the platform with the port density required for virtualized environments.

Specification

Product Description FUJITSU PLAN CP Intel I350-T4 - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 4

Device Type Network adapter

Form Factor Plug-in card - low profile

Interface (Bus) Type PCI Express 2.1 x4

PCI Specification Revision PCIe 2.1

Ports Gigabit Ethernet x 4

Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T

Data Link Protocol 10Mb LAN, 100Mb LAN, 1GbE

Data Transfer Rate 1 Gbps

Network / Transport Protocol TCP/IP, UDP/IP, iSCSI

Processor 1 x Intel I350-AM4

Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Designed For PRIMERGY CX2550 M1, CX2550 M4, CX2550 M5, CX2560 M4, CX2560 M5, CX2570 M4, RX1330 M3, RX1330 M4, RX2510 M2, RX2520 M5, RX2530 M2, RX2530 M4, RX2530 M5, RX2530 M6, RX2540 M2, RX2540 M4, RX2540 M5, RX2540 M6, RX4770 M3, TX1320 M3, TX1320 M4, TX1330 M3, TX1330 M4, TX2550 M4, TX2550 M5, TX2560 M2

General

Device Type Network adapter

Form Factor Plug-in card - low profile

Interface (Bus) Type PCI Express 2.1 x4

PCI Specification Revision PCIe 2.1

Networking

Ports Gigabit Ethernet x 4

Connectivity Technology Wired

Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Data Transfer Rate 1 Gbps

Network / Transport Protocol TCP/IP, UDP/IP, iSCSI

Status Indicators Port transmission speed, link/activity

Features Flow control, auto-negotiation, VLAN support, WOL, IPv6 support, Jumbo Frames support, VMDq, IPv4 support, RSS, SR-IOV, LACP, TSO, PXE 2.0 support, MSI-X, PTP

Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Processor / Memory

Processor 1 x Intel I350-AM4

Expansion / Connectivity

Interfaces 4 x 1000Base-T - RJ-45

Miscellaneous

Included Accessories Low-profile bracket, full-height bracket

Power

Power Consumption Operational 5 Watt

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 55 °C

Compatibility Information

Designed For Fujitsu PRIMERGY CX122 S1, CX250 S1, CX250 S2, CX2550 M1, CX2550 M1 Liquid Cooling, CX2550 M4, CX2550 M4 liquid cooling, CX2550 M5, CX2560 M4 air cooling, CX2560 M4 liquid cooling, CX2560 M5, CX2570 M4 PCI air cooling, CX2570 M4 SXM2 liquid cooling, CX270 S1, CX270 S2, CX272 S1, RX100 S6, RX100 S7, RX100 S7p, RX100 S8, RX1330 M1, RX1330 M2, RX1330 M3, RX1330 M4, RX200 S6, RX200 S7, RX200 S8, RX2510 M2, RX2520 M1, RX2520 M5, RX2530 M1, RX2530 M1-L, RX2530 M2, RX2530 M4, RX2530 M4 Liquid Cooling, RX2530 M5, RX2530 M5 Liquid Cooling, RX2530 M6, RX2540 M1, RX2540 M1-L, RX2540 M2, RX2540 M2 Storage Spaces, RX2540 M4, RX2540 M5, RX2540 M6, RX2560 M1, RX300 S6, RX300 S7, RX300 S8, RX350 S7, RX350 S8, RX4770 M1, RX4770 M2, RX4770 M3, RX500 S7, RX600 S5, RX600 S6, RX900 S1, RX900 S2, SX150 S8 Universal Storage Server, SX350 S8 Universal Storage Server, TX120 S3, TX120 S3p, TX1320 M1, TX1320 M2, TX1320 M3, TX1320 M4, TX1330 M1, TX1330 M2, TX1330 M3, TX1330 M4, TX140 S1, TX140 S1p, TX140 S2, TX150 S7, TX150 S8, TX150 S8r, TX200 S6, TX200 S7, TX2540 M1, TX2550 M4, TX2550 M5, TX2560 M1, TX2560 M2, TX300 S6, TX300 S7, TX300 S8
