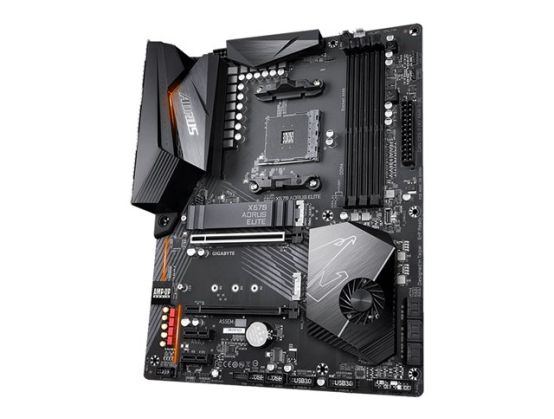

GIGABYTE X570 motherboards provide full support for powerful processors. The design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as refined audio, high-speed Ethernet and advanced Wi-Fi design, to fulfill users' performance, audio, and data transfer needs.
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 2nd Generation Ryzen CPU); PCIe 3.0 x8 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2
Interfaces1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x HDMI ¦ 4 x USB 2.0
Internal Interfaces4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 ¦ 1 x audio - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate
