General
Device Type
Thermal network camera
Connectivity Technology
Wired
Width
1.65 cm
Depth
4.6 cm
Height
10.9 cm
Weight
72 g
Localisation
Argentina, Australia, China, Japan, Brazil, United Kingdom, United States, Europe
Camera
Type
Colour - fixed - outdoor, indoor
Digital Video Format
MPEG-4, MJPEG, H.264
Max Digital Video Resolution
208 x 156
Motion Detection
Yes
Frame Rate (max)
8.3 frames per second
RAM
512 MB
Flash Memory
256 MB
Features
Sharpness control, brightness control, contrast control, e-mail alerts, AXIS Video Hosting System (AVHS), Live Streaming, password protection, Edge Storage, Variable Bitrate (VBR), auto gain control, Zipstream technology, Access Control, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, digest authentication, IP address filtering, HTTPs encryption, temperature control system, signed firmware, Corridor mode, Adaptive Bitrate (ABR), VAPIX support, compression, text overlay
Image Sensor
Type
Uncooled Micro bolometer
Total Pixels
208 x 156
Lens Construction
Type
Fixed focal
Focal Length
2.2 mm - 2.2 mm
Lens Iris
F/1.05
Horizontal Field of View (degree)
63
Vertical Field of View (degree)
47
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, IGMPv2, IGMPv3, CIFS, SFTP, LLDP, USGv6, MQTT
Expansion / Connectivity
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Included Accessories

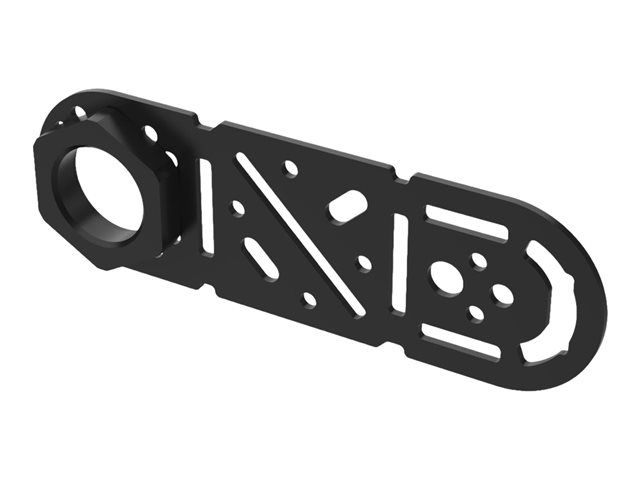

Mounting bracket, AVHS Authentication key
Cables Included
1 x sensor cable - external - 12 m
Compliant Standards
EN55024, IEC 60529 IP66, IEC 60529 IP67, ICES-003 Class B, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IP67, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class B, EN 50581, EAC, KN35, EN 55032 Class B, KCC KN32 Class B, IEC/EN/UL 60950-22, IEEE 802.3af, IEEE 802.3at, IEC/EN/UL 62368-1, AS/NZS CISPR 23 Class B, NIST SP500-267, FCC Part 15 Subpart B Class B
Colour
White
Power
Power Requirements
PoE
Power Device
4 Watt
Software / System Requirements
Software Included
Windows decoder 1-user licence, AXIS Fence Guard, AXIS Video Motion Detection, AXIS Loitering Guard, AXIS Motion Guard
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Relative Humidity (operating)
10 - 85% (non-condensing)
