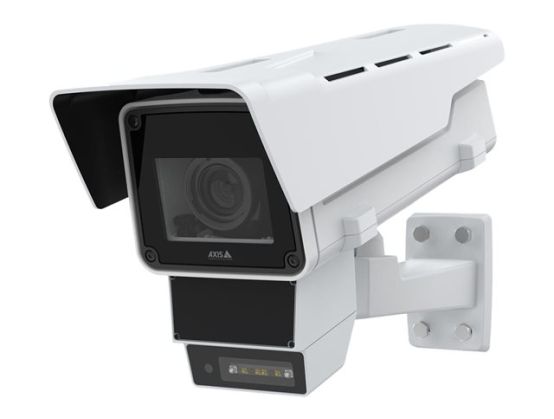

Name: AXIS Q1656-DLE CAMERA 1/1.8IN IMAGE SENSOR OUT
Brand: AXIS
SKU: 1TSECSPD-005062
Price: 2767.72 GBP
Availability: InStock

Overview

Main features

AXIS Q1656-DLE
Network surveillance camera
box
outdoor
weather resistant / impact resistant
colour (Day&Night)
4 MP
2688 x 1512
i-CS-mount
vari-focal
audio
GbE
MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG, H.264B, H.264M, H.264H
DC 10
28 V / PoE Plus Class 4

Overview

Get wide-area intrusion protection and reliable 24/7 detection with a fusion of two powerful technologies: video and radar. This unique device provides state-of-the-art deep learning-powered object classification for next-level detection and visualization.

Specification

Product Description AXIS Q1656-DLE - network surveillance camera - box

Device Type Network surveillance camera - fixed - box - outdoor - weather resistant / impact resistant

Audio Yes: two-way audio capability

Camera Mount Type Wall mount

Dimensions (WxDxH) 15.9 cm x 40.4 cm x 23.4 cm

Weight 5 kg

Colour White, NCS S 1002-B

Connectivity Technology Wired

Camera Colour - Day&Night

Optical Zoom 2.5 x

Max Resolution 2688 x 1512

Frame Rate (max) 60 frames per second

Motion Detection Yes

Optical Sensor Type PS RGB CMOS - 1/1.8" - 4 MP

Minimum Illumination 0.05 lux - colour, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.01 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0 lux - IR ¦ 0.1 lux - colour, Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.02 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE

Focal Length Control Vari-focal

Focal Length 3.9 mm - 10 mm

Lens Mounting I-CS-mount

Focus Adjustment Automatic (min distance 0.5 m)

Lens Iris F/1.5 (P-Iris)

Interfaces Ethernet 10Base-T/100Base-TX/1000Base-T

Control Interface RS-485, RS-422

Voltage DC 10 - 28 V / PoE Plus Class 4

Features IR Corrected lens, remote focus, remote zoom, infrared-cut filter, Forensic WDR, Lightfinder 2.0 technology, Frequency Modulated Continuous Wave (FMCW) radar sensor, Person Detection, Vehicle Detection, object classification, cross line detection, speed detection, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, day/night threshold, saturation control, contrast control, brightness control, white balance, tone mapping, exposure mode, exposure zone, defogging, electronic image stabilisation, compression, dynamic text, image overlay, polygon privacy mask, Audio Noise Reduction, full duplex audio, auto gain control, HTTPs encryption, IP address filtering, Access Control, centralised certificate management, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, heater, Pixel Counter Support, Remote Back Focus, AXIS Object Analytics, Axis device ID, Axis Edge Vault, brute force delay protection, digest authentication, memory card encryption, password protection, secure boot, secure keystore, signed firmware, signed video, OptimizedIR, built-in LED illuminator

Manufacturer Warranty 5-year warranty

Environmental Parameters (operating) -40 °C - 60 °C; 10 - 100% RH (condensing) relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: two-way audio capability

Audio Formats LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS

Form Factor Box

Camera Mount Type Wall mount

Connectivity Technology Wired

Width 15.9 cm

Depth 40.4 cm

Height 23.4 cm

Weight 5 kg

Localisation Australia, European Union, United Kingdom, United States

Camera

Type Colour - Day&Night - fixed - outdoor - weather resistant / impact resistant

Digital Video Format MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG, H.264B, H.264M, H.264H

Max Digital Video Resolution 2688 x 1512

Motion Detection Yes

Exposure Range 1 sec - 1/47500 sec

Minimum Illumination 0.05 lux - colour, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.01 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0 lux - IR ¦ 0.1 lux - colour, Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.02 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE

Infrared LEDs Yes

Infrared Distance 38 m

Video Capture 2688 x 1512, WDR off @ 60 fps ¦ 2688 x 1512 @ 30 fps

RAM 2 GB

Flash Memory 8 GB

Features IR Corrected lens, remote focus, remote zoom, infrared-cut filter, Forensic WDR, Lightfinder 2.0 technology, Frequency Modulated Continuous Wave (FMCW) radar sensor, Person Detection, Vehicle Detection, object classification, cross line detection, speed detection, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, day/night threshold, saturation control, contrast control, brightness control, white balance, tone mapping, exposure mode, exposure zone, defogging, electronic image stabilisation, compression, dynamic text, image overlay, polygon privacy mask, Audio Noise Reduction, full duplex audio, auto gain control, HTTPs encryption, IP address filtering, Access Control, centralised certificate management, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, heater, Pixel Counter Support, Remote Back Focus, AXIS Object Analytics, Axis device ID, Axis Edge Vault, brute force delay protection, digest authentication, memory card encryption, password protection, secure boot, secure keystore, signed firmware, signed video, OptimizedIR, built-in LED illuminator

Image Sensor

Type 4 MP PS RGB CMOS 1/1.8"

Lens Construction

Type I-CS-mount - vari-focal

Optical Zoom 2.5 x

Focal Length 3.9 mm - 10 mm

Lens Iris F/1.5 (P-Iris)

Focus Adjustment Automatic

Min Focus Distance 0.5 m

Horizontal Field of View (degree) 44 - 96

Vertical Field of View (degree) 26 - 63

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX/1000Base-T

Network Protocols IPv4, IPv6, USGv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT, Syslog, NTS

Control Interface RS-485, RS-422

Expansion / Connectivity

Ports LAN/power - RJ-45 ¦ Audio line out - 3.5 mm jack ¦ Audio line-in/microphone - 3.5 mm jack ¦ Serial RS-485/RS-422 - terminal block

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories AXIS T94Q01A Wall Mount, sunshield, connector kit, Resistorx T20 tool

Compliant Standards IEEE 802.1x, EAL 4+, FIPS 140-2 Level 2, IEEE 802.1ar, TLS v1.2, TLS v1.3, X.509, IP66, IK08, PVC-free, BFR-free, CFR free, IEEE 802.3at, EN 305 550, EN 301489-1, EN 301 489-3, EN 62311, FCC Part 15 Subpart C, CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, AS/NZS CISPR 32 Class A, VCCI Class A, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), ISO 21207 method B, NIST SP500-267

Colour White, NCS S 1002-B

Power

Power Requirements DC 10 - 28 V / PoE Plus Class 4

Software / System Requirements

Software Included AXIS Object Analytics, AXIS Video Motion Detection, AXIS Speed Monitor, Windows decoder 1-user licence

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 60 °C

Relative Humidity (operating) 10 - 100% RH (condensing)
