AXIS

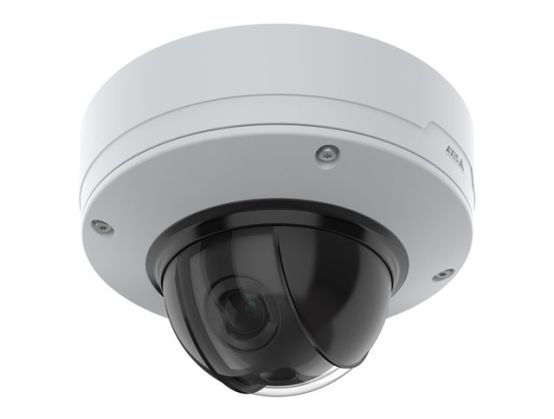

AXIS Q3536-LVE 29MM DOME CAMERA ADV.FIXED DOME CAMERA W/DLPU

Name: AXIS Q3536-LVE 29MM DOME CAMERA ADV.FIXED DOME CAMERA W/DLPU
Brand: AXIS
SKU: 1TSECSPD-003892
Price: 1438.57 GBP
Availability: InStock

SKU

1TSECSPD-003892

Manufacture#: 02224-001

Be the first to review this product

£1198.81

£1438.57 inc VAT

Checking delivery…

Product details

Network surveillance camera
dome
vandal / weatherproof
colour (Day&Night)

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

AXIS Q3536-LVE
Network surveillance camera
dome
vandal / weatherproof
colour (Day&Night)
4 MP
2688 x 1512
auto iris
vari-focal
audio
GbE
MJPEG, H.264, MPEG-4 AVC
DC 10
28 V / PoE Plus Class 4

Overview

AXIS Q3536-LVE offers support for advanced analytics based on deep learning on the edge. This robust camera can withstand the harshest weather conditions and the most powerful impacts.

Specification

Product Description AXIS Q3536-LVE - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome - vandal / weatherproof

Audio Yes: two-way audio capability

Dimensions (WxDxH) 18.4 cm x 18.4 cm x 12.4 cm

Weight 2.1 kg

Colour White

Connectivity Technology Wired

Camera Colour - Day&Night

Optical Zoom 2.6 x

Max Resolution 2688 x 1512

Frame Rate (max) 60 frames per second

Motion Detection Yes

Optical Sensor Type PS RGB CMOS - 1/1.8" - 4 MP

Minimum Illumination 0.08 lux - colour - F1.5 - 50 IRE ¦ 0 lux - B&W - F1.5 - 50 IRE

Focal Length Control Vari-focal

Focal Length 11.3 mm - 29.4 mm

Lens Iris F/1.7 - auto iris (P-Iris)

Panning Range (degree) 180

Tilting Range (degree) -43 to +80

Interfaces Ethernet 10Base-T/100Base-TX/1000Base-T

Voltage DC 10 - 28 V / PoE Plus Class 4

Features Sharpness control, white balance, colour control, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Lightfinder technology, active tampering alarm, digital PTZ function, Event Notification, password protection, IR Corrected lens, Audio Detection, OptimizedIR, Zipstream technology, ONVIF (Profile T) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Lightfinder 2.0 technology, IP address filtering, electronic image stabilisation, exposure zone, ONVIF (Profile M) support, ONVIF (Profile S) support

Manufacturer Warranty 5-year warranty

Environmental Parameters (operating) -50 °C - 60 °C; 10 - 100% relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: two-way audio capability

Audio Formats PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS

Form Factor Dome

Connectivity Technology Wired

Width 18.4 cm

Depth 18.4 cm

Height 12.4 cm

Weight 2.1 kg

Camera

Type Colour - Day&Night - fixed - vandal / weatherproof

Digital Video Format MJPEG, H.264, MPEG-4 AVC

Max Digital Video Resolution 2688 x 1512

Motion Detection Yes

Exposure Range 1 sec - 1/91000 sec

Minimum Illumination 0.08 lux - colour - F1.5 - 50 IRE ¦ 0 lux - B&W - F1.5 - 50 IRE

Infrared LEDs Yes

Infrared Distance 40 m

Frame Rate (max) 60 frames per second

RAM 2 GB

Flash Memory 8 GB

Image Sensor

Type 4 MP PS RGB CMOS 1/1.8"

Lens Construction

Type Vari-focal

Optical Zoom 2.6 x

Focal Length 11.3 mm - 29.4 mm

Lens Iris F/1.7 auto iris (P-Iris)

Horizontal Field of View (degree) 15 - 40

Vertical Field of View (degree) 9 - 22

Panning

Range (degree) 180

Tilting

Range (degree) -43 to +80

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX/1000Base-T

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP, LLDP

Expansion / Connectivity

Ports LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Audio line out - 3.5 mm jack

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories Cable gaskets, I/O and DC connectors, Resistorx L-key, drill hole template, mounting bracket

Compliant Standards IK10+, IP66, IP67, IP6K9K, FIPS 140-2 Level 2

Colour White

Power

Power Requirements DC 10 - 28 V / PoE Plus Class 4

Power Device 9 Watt

Software / System Requirements

Software Included Windows decoder 1-user licence
