Do you need to accelerate the performance of your mixed use applications? HPE SAS Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high read and write IOPS performance. HPE Enterprise SAS MU SSDs transfer data at full duplex (bidirectional) allowing greater I/O bandwidth to alleviate bottlenecks at quadruple the 6Gb interface of SATA drives. HPE Enterprise SAS MU SSDs are best suited for mission-critical applications requiring a balanced mix of read and write I/O to deliver significantly faster data transfers from storage than SATA SSDs. HPE SAS MU SSDs are ideal for big data analytics, high performance compute and virtualization workloads. SAS technology continues to be the interface of choice for many workloads for its reliability and 24x7 operation in the enterprise data center. HPE SSDs are backed by over 3 million hours of testing and qualification ensuring reliable, high performing drives.

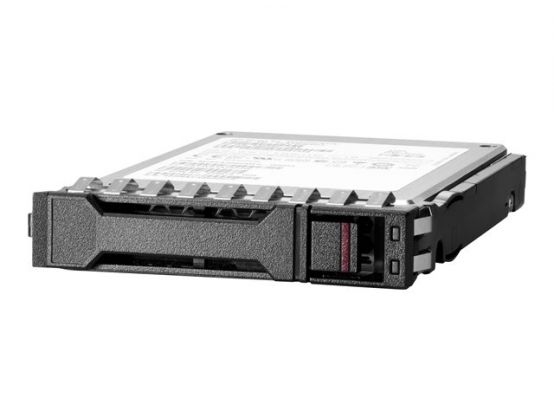

Product DescriptionHPE Mixed Use Value - SSD - 1.92 TB - SAS 12Gb/s
TypeSolid state drive - hot-swap
Capacity1.92 TB
NAND Flash Memory TypeTriple-level cell (TLC)
Form Factor2.5" SFF
InterfaceSAS 12Gb/s
Data Transfer Rate1.2 GBps
FeaturesDigitally Signed Firmware
Dimensions (WxDxH)15 mm
Weight500 g
Bundled withHPE Basic Carrier
Designed ForProLiant DL20 Gen10 Plus, DL20 Gen10 Plus Base, DL20 Gen10 Plus Entry, DL20 Gen10 Plus High Performance, DL20 Gen10 Plus Performance, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry (2.5"), DL360 Gen10 Plus (2.5"), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5"), DL360 Gen10 Plus for Weka Base Tracking (2.5"), DL360 Gen10 Plus Network Choice (2.5"), DL365 Gen10 Plus (2.5"), DL380 Gen10 (2.5"), DL380 Gen10 Plus (2.5"), DL380 Gen10 Plus Network Choice (2.5"), DL385 Gen10 Plus, DL385 Gen10 Plus Entry; SimpliVity 325 Gen10 Plus V2 Node
Extended Specification
General
Device TypeSolid state drive - hot-swap
Capacity1.92 TB
NAND Flash Memory TypeTriple-level cell (TLC)
Form Factor2.5" SFF
InterfaceSAS 12Gb/s
FeaturesDigitally Signed Firmware
Height15 mm
Weight500 g
Bundled withHPE Basic Carrier
Performance
Drive Writes Per Day (DWPD)3
SSD Endurance10500 TB
Drive Transfer Rate1.2 GBps (external)
Internal Data Rate810 MBps (read) / 635 MBps (write)
Designed ForHPE ProLiant DL20 Gen10 Plus (2.5"), DL20 Gen10 Plus Base (2.5"), DL20 Gen10 Plus Entry (2.5"), DL20 Gen10 Plus High Performance (2.5"), DL20 Gen10 Plus Performance (2.5"), DL325 Gen10 Plus V2 (2.5"), DL325 Gen10 Plus V2 Base (2.5"), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5"), DL325 Gen10 Plus V2 Performance (2.5"), DL345 Gen10 Plus (2.5"), DL345 Gen10 Plus Base (2.5"), DL345 Gen10 Plus Entry (2.5"), DL360 Gen10 Plus (2.5"), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5"), DL360 Gen10 Plus for Weka Base Tracking (2.5"), DL360 Gen10 Plus Network Choice (2.5"), DL365 Gen10 Plus (2.5"), DL380 Gen10 (2.5"), DL380 Gen10 Plus (2.5"), DL380 Gen10 Plus Network Choice (2.5"), DL385 Gen10 Plus (2.5", v2), DL385 Gen10 Plus Entry (2.5", v2) ¦ HPE SimpliVity 325 Gen10 Plus V2 Node (2.5")
