for ThinkAgile HX33XX Certified Node; MX3330-F Appliance; MX3331-F Certified Node
Overview

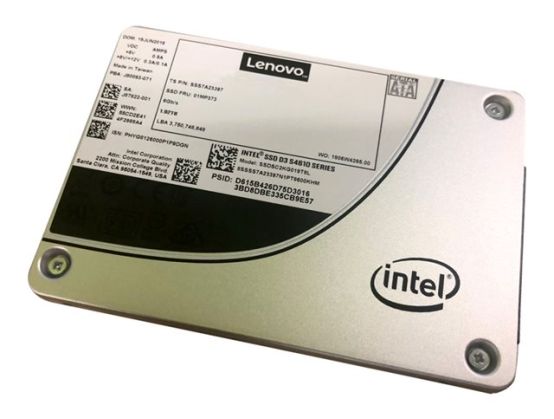

The Intel S4610 Mainstream are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection.
High reliability and enhanced ruggedness
Full end-to-end data path protection
Thermal throttling to extend the life of the drive
Enhanced power loss data protection
Enhanced durabilityBuilt to withstand the rigors of daily use, this solid state drive features a shock acceleration operating tolerance of 1000 g and a non-operating vibration acceleration of 3.13 g, ensuring data integrity under various stress conditions.Optimized performanceWith an impressive 4KB random read of 90000 IOPS and a write of 50000 IOPS, coupled with a low average latency of 36 μs, this drive delivers swift and reliable performance for demanding applications.Advanced securityEquipped with 256-bit AES hardware encryption, this solid state drive offers data protection, keeping your sensitive information safe from unauthorized access.High endurance and reliabilityFeaturing High Endurance Technology (HET) and an SSD endurance of 10.5 PB, this drive is designed for long-term reliability, backed by a MTBF of 2,000,000 hours.Efficient power consumptionOperating with a typical power consumption of only 2.8 watts, this solid state drive balances performance with efficiency, reducing energy costs and extending battery life in portable devices.
FeaturesHigh Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.
FeaturesHigh Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.
Weight66 g
Performance
Drive Writes Per Day (DWPD)3
SSD Endurance10.5 PB
Drive Transfer Rate600 MBps (external)
Internal Data Rate560 MBps (read) / 510 MBps (write)
4KB Random Read90000 IOPS
4KB Random Write50000 IOPS
Average Latency36 µs
Reliability
MTBF2,000,000 hours
Non-Recoverable Errors1 per 10^17
Expansion & Connectivity
Interfaces1 x SATA 6 Gb/s
Compatible Bay2.5"
Power
Power Consumption2.8 Watt (typical)
Miscellaneous
Included AccessoriesHot-plug tray
Compliant StandardsFCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA60950-1 (2nd Edition), LVD 2006/95/EC, AS/NZS 3584, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC
Dimensions & Weight (Shipping)
Shipping Width17.4 cm
Shipping Depth13.3 cm
Shipping Height6.3 cm
Shipping Weight434 g
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature70 °C
Humidity Range Operating5 - 95% (non-condensing)
Shock Tolerance (operating)1000 g @ 0.5 ms
Vibration Tolerance (operating)2.17 g @ 5-700 Hz
Vibration Tolerance (non-operating)3.13 g @ 5-800 Hz
