for ThinkAgile HX1330 Appliance; HX5530 Appliance; HX5531 Certified Node
Overview

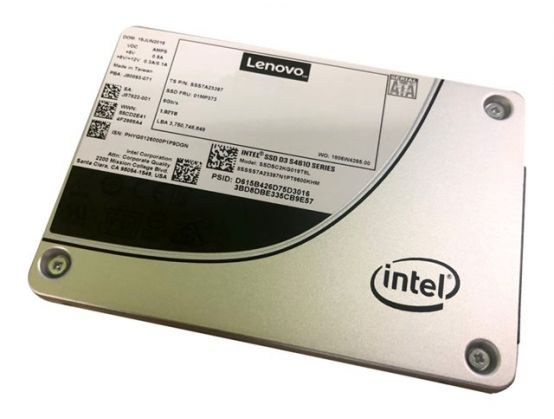

The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. These drives offer improved performance and lower latency.
Cost-effective Intel 3D NAND TLC Flash Memory
SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
High reliability and enhanced ruggedness
Energy savings, with low typical write power consumption
Absence of moving parts to reduce potential failure points in the server
S.M.A.R.T. support
Advanced Encrypting Standard (AES) encryption
Full end-to-end data path protection
Thermal throttling to extend the life of the drive
FeaturesHigh Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.
FeaturesHigh Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.
Weight66 g
Performance
Drive Writes Per Day (DWPD)3
SSD Endurance10.5 PB
Drive Transfer Rate600 MBps (external)
Internal Data Rate560 MBps (read) / 510 MBps (write)
4KB Random Read90000 IOPS
4KB Random Write50000 IOPS
Average Latency36 µs
Reliability
MTBF2,000,000 hours
Non-Recoverable Errors1 per 10^17
Expansion & Connectivity
Interfaces1 x SATA 6 Gb/s
Compatible Bay3.5"
Power
Power Consumption2.8 Watt (typical)
Miscellaneous
Included AccessoriesHot-plug tray
Compliant StandardsFCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA60950-1 (2nd Edition), LVD 2006/95/EC, AS/NZS 3584, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC
Dimensions & Weight (Shipping)
Shipping Width25.7 cm
Shipping Depth19.3 cm
Shipping Height9.5 cm
Shipping Weight484 g
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature70 °C
Humidity Range Operating5 - 95% (non-condensing)
Shock Tolerance (operating)1000 g @ 0.5 ms
Vibration Tolerance (operating)2.17 g @ 5-700 Hz
Vibration Tolerance (non-operating)3.13 g @ 5-800 Hz
