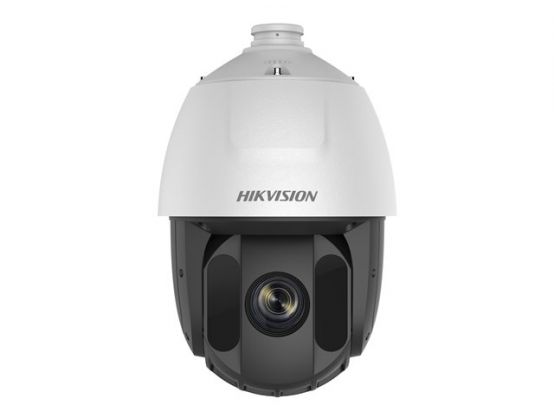

Name: Hikvision Pro Series DS-2DE5425IW-AE(S5) - network surveillance camera
Brand: HIKVISION
SKU: 1TACCCAB-074350
Price: 354.07 GBP
Availability: OutOfStock

Overview

Main features

Hikvision Pro Series DS-2DE5425IW-AE(S5)
Network surveillance camera
PTZ
colour (Day&Night)
4 MP
2560 x 1440
720p, 1080p
motorized
audio
LAN 10/100
MJPEG, H.264, H.265, H.265+, H.264+
AC 24 V / High PoE

Overview

Hikvision DS-2DE5425IW-AE (S5) 4 MP 25 x IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 x optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.

Specification

Product Description Hikvision Pro Series DS-2DE5425IW-AE(S5) - network surveillance camera

Device Type Network surveillance camera - pan / tilt / zoom

Audio Yes

Dimensions (WxDxH) 20.8 cm x 20.8 cm x 34.5 cm

Weight 3.3 kg

Connectivity Technology Wired

Camera Colour - Day&Night

Optical Zoom 25 x

Max Resolution 2560 x 1440

Frame Rate (max) 30 frames per second

Motion Detection Yes

Video Modes 720p, 1080p

Optical Sensor Type PS CMOS - 1/2.8" - 4 MP

Minimum Illumination 0.005 lux - colour - F1.6 - AGC on ¦ 0.001 lux - B&W - F1.6 - AGC on ¦ 0 lux - IR

Focal Length Control Motorized zoom

Focal Length 4.8 mm - 120 mm

Focus Adjustment Automatic, manual, semi-auto

Lens Iris F/1.6

Panning Range (degree) 360

Tilting Range (degree) -15 to +90

Interfaces Ethernet 10Base-T/100Base-TX

Voltage AC 24 V / High PoE

Features Manual white balance, Backlight Compensation (BLC), sharpness control, saturation control, brightness control, contrast control, Wide Dynamic Range (WDR), Privacy Mask Function, Highlight Compensation (HLC), NAS-Ready, Electronic Image Stabilizer (EIS), surge protection, tamper-detection, notification picture to FTP, reset button, password protection, auto tracking, lightning-resistant, triple video stream, Region of Interest (ROI), Defog, intrusion detection, auto white balance, 300 preset positions, audio exception detection, ONVIF (Profile S) support, ONVIF (Profile G) support, object removal detection, Line Crossing Detection, Voltage Transient Protection, Internet Server Application Programming Interface (ISAPI), DORI coverage, unattended baggage detection, IP address filtering, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, smart tracking, event tracking, 8 patrols, regional focus, regional exposure, 32 preset positions per patrol, up to 20 channels simultaneous live view, manual tracking, environment noise filtering, Power-off Memory, ONVIF (Profile T) support, Auto-Flip, 3D Positioning, Preset Freezing, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC), Face Capture, Smooth Streaming, DarkFighter technology

Environmental Parameters (operating) -30 °C - 65 °C; 0 - 90% relative humidity

General

Device Type Network surveillance camera

Audio Support Yes

Audio Formats PCM, G.726, G.722.1, MP2L2, G.711a, G.711u

Connectivity Technology Wired

Width 20.8 cm

Depth 20.8 cm

Height 34.5 cm

Weight 3.3 kg

Camera

Type Colour - Day&Night - pan / tilt / zoom

Digital Video Format MJPEG, H.264, H.265, H.265+, H.264+

Max Digital Video Resolution 2560 x 1440

Motion Detection Yes

Video Modes 720p, 1080p

Digital Zoom 16

Exposure Range 1 sec - 1/30000 sec

Minimum Illumination 0.005 lux - colour - F1.6 - AGC on ¦ 0.001 lux - B&W - F1.6 - AGC on ¦ 0 lux - IR

Infrared LEDs Yes

Infrared Distance 150 m

Video Capture 1920 x 1080, 50 Hz @ 25 fps ¦ 1280 x 720, 50 Hz @ 25 fps ¦ 1920 x 1080, 60 Hz @ 30 fps ¦ 1280 x 720, 60 Hz @ 30 fps ¦ 2560 x 1440, 50 Hz @ 25 fps ¦ 2560 x 1440, 60 Hz @ 30 fps ¦ 1280 x 960, 50 Hz @ 25 fps ¦ 1280 x 960, 60 Hz @ 30 fps

Features Manual white balance, Backlight Compensation (BLC), sharpness control, saturation control, brightness control, contrast control, Wide Dynamic Range (WDR), Privacy Mask Function, Highlight Compensation (HLC), NAS-Ready, Electronic Image Stabilizer (EIS), surge protection, tamper-detection, notification picture to FTP, reset button, password protection, auto tracking, lightning-resistant, triple video stream, Region of Interest (ROI), Defog, intrusion detection, auto white balance, 300 preset positions, audio exception detection, ONVIF (Profile S) support, ONVIF (Profile G) support, object removal detection, Line Crossing Detection, Voltage Transient Protection, Internet Server Application Programming Interface (ISAPI), DORI coverage, unattended baggage detection, IP address filtering, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, smart tracking, event tracking, 8 patrols, regional focus, regional exposure, 32 preset positions per patrol, up to 20 channels simultaneous live view, manual tracking, environment noise filtering, Power-off Memory, ONVIF (Profile T) support, Auto-Flip, 3D Positioning, Preset Freezing, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC), Face Capture, Smooth Streaming, DarkFighter technology

Image Sensor

Type 4 MP PS CMOS 1/2.8"

Lens Construction

Type Motorized zoom

Optical Zoom 25 x

Focal Length 4.8 mm - 120 mm

Lens Iris F/1.6

Focus Adjustment Automatic, manual, semi-auto

Panning

Range (degree) 360

Speed (degree/sec) Up to 120

Tilting

Range (degree) -15 to +90

Speed (degree/sec) Up to 80

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, IGMP, QOS, CIFS, NFS, ISAPI

Alarm Inputs Qty 2

Alarm Outputs Qty 1

Expansion / Connectivity

Ports LAN/power - RJ-45 ¦ Audio line out ¦ Audio line in

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Compliant Standards IP66, IEEE 802.1x

Power

Power Requirements AC 24 V / High PoE

Power Device 30 Watt

Environmental Parameters

Min Operating Temperature -30 °C
