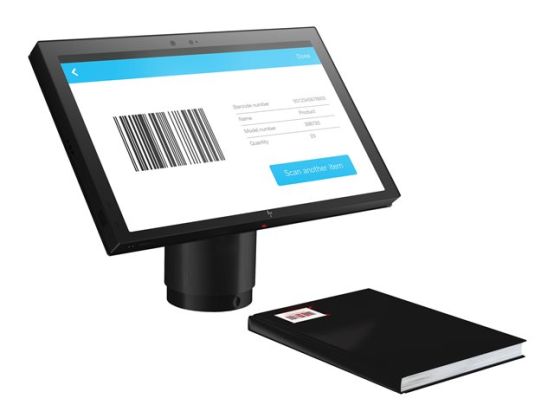

This integrated bar code scanner streamlines your checkout area, while offering placement options, acceptance of various barcodes and coupons, and enhanced features for an easier, more accessible checkout experience.
TypeBarcode scanner - integrated - stationary - USB - decoded
ColourBlack
Scan Element TypeCMOS - white LED / red LED
Sensor Resolution1200 x 800
Power5 V
System RequirementsRed Hat Linux, Ubuntu 12.04, SUSE Linux Enterprise Desktop 11 64-bit, Windows 10 Pro 64-bit Edition, Ubuntu 14.04 LTS (64-bit) or later, Android 8.0 (Oreo) or later, Windows 10 IoT Enterprise 2019 LTSC 64-bit Edition (RS5), Windows 10 IoT Enterprise 2016 LTSB 64-bit Edition (RS1), CentOS 5.6.8 (64-bit) or later, SuSE Linux Enterprise Server 12 SP3 (64-bit) or later
Dimensions (WxDxH)3.07 cm x 4.5 cm x 1.01 cm
Extended Specification
General
TypeBarcode scanner - integrated - stationary
ColourBlack
Barcode
Interface TypeUSB
Scan Element TypeCMOS - white LED / red LED
Sensor Resolution1200 x 800
Light Source Wave Length625 nm
Scan ModeFixed projection
Max Working Distance24.5 cm
Skew (Degrees)60
Pitch (Degrees)60
Decode CapabilityCode 39, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, Australian Post, Kix (Netherlands) Post, Royal Mail, Micro QR code, EAN-13, US Planet, US Postnet, China GM Code, Chinese Sensible Code, Code One
TTL DecodingDecoded
FeaturesPassport reader
Expansion / Connectivity
Interfaces1 x USB
Miscellaneous
Compliant StandardsRoHS, IP54, EMC Class B, IEC 62471, FCC Part 15 Class B, IEC 62368-1
Power
Voltage5 V
Power Consumption Operational3 Watt
Electric Current Required300 mA (typical), 1.5 mA (sleep), 50 mA (idle), 450 mA (maximum)
System Requirements
OS RequiredRed Hat Linux, Ubuntu 12.04, SUSE Linux Enterprise Desktop 11 64-bit, Windows 10 Pro 64-bit Edition, Ubuntu 14.04 LTS (64-bit) or later, Android 8.0 (Oreo) or later, Windows 10 IoT Enterprise 2019 LTSC 64-bit Edition (RS5), Windows 10 IoT Enterprise 2016 LTSB 64-bit Edition (RS1), CentOS 5.6.8 (64-bit) or later, SuSE Linux Enterprise Server 12 SP3 (64-bit) or later
