HPE

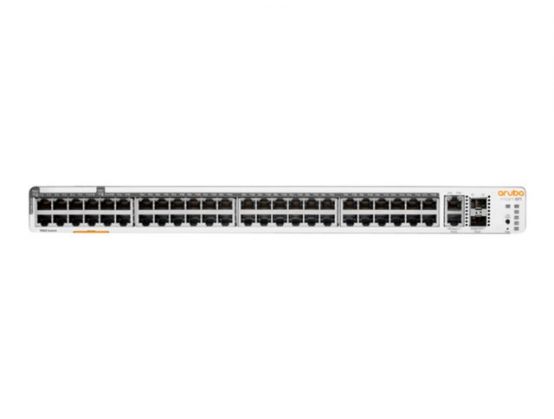

HPE Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch - Switch - Managed - 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T - rack-mountable - PoE (600 W) - BTO

Name: HPE Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch - Switch - Managed - 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T - rack-mountable - PoE (600 W) - BTO
Brand: HPE
SKU: 1TSOFRSO-001791
Price: 1398.54 GBP
Availability: InStock

SKU

1TSOFRSO-001791

Manufacture#: JL809A

Be the first to review this product

£1165.45

£1398.54 inc VAT

Checking delivery…

Product details

Switch
Managed
48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
rack-mountable

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

HPE Networking Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch
Switch
Managed
48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
rack-mountable
PoE (600 W)

Overview

HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

Specification

Product Description HPE Networking Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch - switch - 48 ports - Managed - rack-mountable

Device Type Switch - 48 ports - Managed

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T

Power Over Ethernet (PoE) PoE

PoE Budget 600 W

Performance Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs

Capacity MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32

MAC Address Table Size 16000 entries

Jumbo Frame Support 9216 bytes

Routing Protocol Static IP routing

Remote Management Protocol RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS

Features EEE, ARP support, auto-uplink (auto MDI/MDI-X), DHCP support, TPM, VLAN support, auto voice VLAN, LLDP-MED, LACP, STP support, BPDU Filter, flow control, IPv6 support, auto-negotiation, ACL support, CoS, port mirroring, full duplex mode, half duplex mode

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p

Power AC 100-240 V (50/60 Hz)

Dimensions (WxDxH) 44.25 cm x 40.275 cm x 4.395 cm

Weight 4.9 kg

General

Device Type Switch - 48 ports - Managed

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T

Power Over Ethernet (PoE) PoE

PoE Budget 600 W

Performance Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs

Capacity MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32

MAC Address Table Size 16000 entries

Jumbo Frame Support 9216 bytes

Routing Protocol Static IP routing

Remote Management Protocol RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS

Authentication Method RADIUS

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p

Processor 1 x ARM: 800 MHz

Status Indicators Port status, power

Expansion / Connectivity

Interfaces 48 x 10/100/1000 Base-T RJ-45 600 W ¦ 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ ¦ 2 x 10GBase-T RJ-45

Power

Power Device Internal power supply

Voltage Required AC 100-240 V (50/60 Hz)

Miscellaneous

MTBF 68 years

Compliant Standards IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 62368-1, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, IEC/EN 60825-1:2014 Class 2, EN 55032:2015 Class A, CISPR 32:2015 Class A, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, EN 55035, CISPR 35, KN35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3

Dimensions & Weight

Width 44.25 cm

Depth 40.275 cm

Height 4.395 cm

Weight 4.9 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 15 - 95% (40 °C)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C
