Four-by-four inch Intel NUC boards come with a soldered-on processor. Boards can be purchased independently of the kit, providing a mini PC that's fully customizable, scalable, and configurable for a wide variety of solutions.

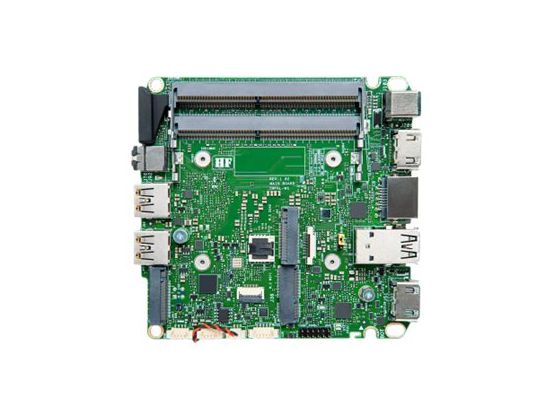

Product DescriptionIntel Next Unit of Computing 13 Pro Board - NUC13ANBi3 - motherboard - UCFF - Intel Core i3 i3-1315U
Product TypeMotherboard - UCFF
ProcessorIntel Core i3 i3-1315U (6-core)
Processor Socket1
Max RAM Size64 GB
RAM Supported2 SO-DIMM slots - DDR4, non-ECC
Storage Ports1 x SATA-600, 2 x M.2
USB / FireWire Ports2 x USB4 + 3 x USB 3.2 Gen 2 + 1 x USB 2.0 + (2 x USB 2.0 via headers)
GraphicsIntel UHD Graphics
LAN2.5 Gigabit Ethernet
Environmental StandardsENERGY STAR Qualified
Manufacturer Warranty3-year warranty
Designed ForNext Unit of Computing 13 Pro Kit - NUC13ANHi3, 13 Pro Kit - NUC13ANKi3
Extended Specification
General
Product TypeMotherboard - UCFF
ProcessorIntel Core i3 i3-1315U (6-core)
Cache MemoryIntel Smart Cache - 10 MB
Max Processors Qty1
Supported RAM
Max Size64 GB
TechnologyDDR4
Bus Clock3200 MHz
Supported RAM Integrity CheckNon-ECC
FeaturesDual channel memory architecture
Graphics
Graphics ControllerIntel UHD Graphics
LAN
Network ControllerIntel I226-V
Network Interfaces2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots2 x SO-DIMM 260-pin (1.2 V) (DDR4) ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242 M.2 Key B slot) ¦ 1 x M.2 socket (2230 M.2 Key E slot)
Storage InterfacesSATA-600 -connectors: 1
Interfaces2 x Thunderbolt 4/DisplayPort/USB4 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB 2.0 ¦ 2 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x headphones/microphone - mini-jack
Internal Interfaces2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 2 ¦ Serial - header
Power ConnectorsDC-in power connector
Miscellaneous
Compliant StandardsICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, CISPR, REACH, E-Standby, CEC, ERP, CEL, EN 62311, EN 300.440, China RoHS, EN 300 328, GEMS, EN 301 489-1, KN32, KN35, EN 62368-1, IEC 62368-1, AS/NZS 2772.2, EN 301 893, EN 55032, EN 301 489-3, EU RoHS, UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32
Width10.4 cm
Depth10.2 cm
Environmental Standards
ENERGY STAR CertifiedYes
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Compatibility Information
Designed ForIntel Next Unit of Computing 13 Pro Kit - NUC13ANHi3, 13 Pro Kit - NUC13ANKi3
