Overview

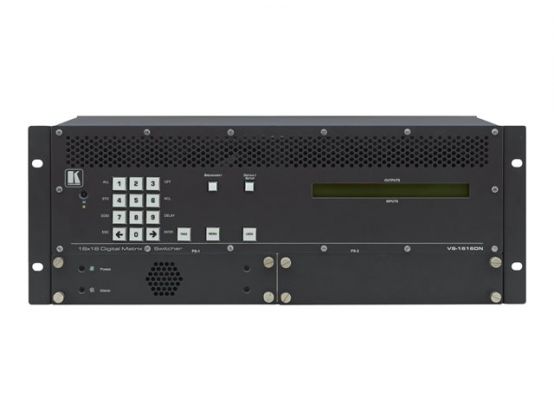

VS-1616DN is a high-performance 2 x 2 to 16 x 16 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals. The unit is a multi-format digital switcher, populated from 2 x 2 to 16 x 16 in increments of two inputs and/or two outputs. The chassis includes optional dual, redundant power supplies, a control module and a test module that can monitor and test any input and output in the matrix. VS-1616DN supports a wide variety of input and output cards for different AV signals.
  • Kramer Equalization & re‑Klocking technology - rebuilds the digital signal to travel longer distances
  • Optional fast switching support - for fraction of a second switching
  • Modular & easily configurable platform - input or output module types can be mixed and added in increments of 2 from 2 x 2 up to 16 x 16
  • Protocol 3000 support
  • Flexible configuration - to disable HDCP support and convert between HDMI and DVI
  • Default EDID - for each input
  • EDID capture - copies and stores the EDID from a display device
  • Take button - executes multiple switches all at once
  • Memory locations - stores multiple switches as presets to be recalled and executed as needed
