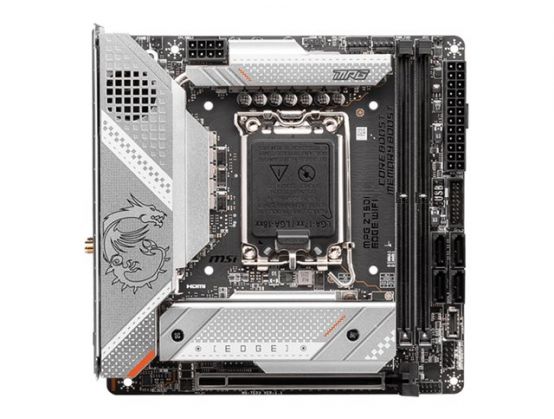

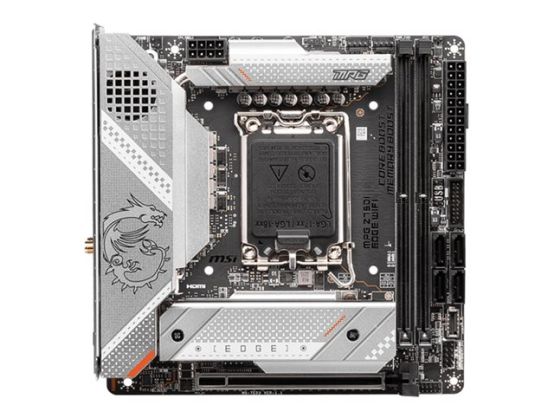

MB INT MPG Z790I EDGE WIFI DDR5
Manufacture#: MPG Z790I EDGE WIFI
Checking delivery…
Product details
Motherboard
mini ITX
LGA1700 Socket
Z790 Chipset
Payment options available at checkout
Main features
MSI MPG Z790I Edge WiFi
Motherboard
mini ITX
LGA1700 Socket
Z790 Chipset
USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1
2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Product Description
MSI MPG Z790I Edge WiFi - motherboard - mini ITX - LGA1700 Socket - Z790
Product Type
Motherboard - mini ITX
Chipset Type
Intel Z790
Processor Socket
1 x LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
96 GB
RAM Supported
2 DIMM slots - DDR5, non-ECC, unbuffered
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports
1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
General
Product Type
Motherboard - mini ITX
Chipset Type
Intel Z790
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
96 GB
Technology
DDR5
Bus Clock
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 3 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x aerial
Internal Interfaces
2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
Hardware Features
Water Pump Header, Debug LED, Clear CMOS Button, 10+1+1 Phase Power Design, 105A Smart Power Stage, MSI Audio Boost 5, M.2 Shield FROZR, pre-mounted I/O shield, MSI Steel Armor, 12 Layer PCB, Extended Heatsink Design, Frozr Heatsink Design, DIY Friendly Design, Surface Mount Technology (SMT), MSI Mystic Light, MSI Core Boost, MSI Memory Boost
Miscellaneous
Included Accessories
USB drive, Wi-Fi aerial, cable stickers, Rainbow RGB LED extension cable, M.2 screw package
Cables Included
2 x Serial ATA cable
Compliant Standards
FISMA, FIPS, DisplayPort 1.4
Width
17 cm
Depth
17 cm
