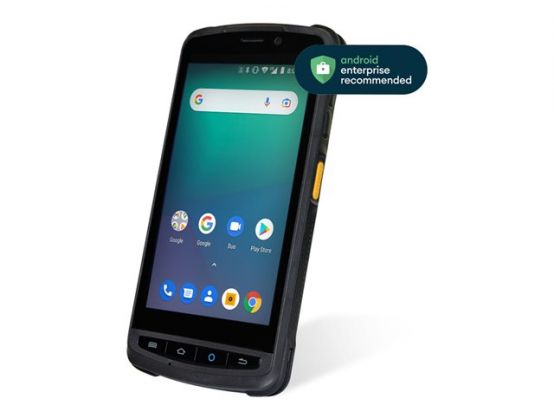

Name: MT90 ORCA PRO II MOBILE COMPUTER 5IN TS 2D CMOS MEGA PI
Brand: NEWLAND
SKU: 1TCPTOPR-017055
Price: 531.97 GBP
Availability: OutOfStock

Overview

Main features

Newland MT90 Orca Pro II
Data collection terminal
rugged
Android 11 GMS
128 GB
5" colour (1280 x 720)
rear camera + front camera
barcode reader
(2D imager / RFID)
microSD slot
Wi-Fi 5, NFC, RFID, Bluetooth
4G

Overview

Newland MT90 Orca Pro II - data collection terminal - Android 11 GMS - 128 GB - 5" - 4G

Specification

Product Description Newland MT90 Orca Pro II - data collection terminal - Android 11 GMS - 128 GB - 5" - 4G

Product Type Data collection terminal - rugged

Operating System Android 11 GMS

Display 5" colour - 1280 x 720

Processor (8-core)

Processor Clock Speed 2 GHz

Storage 128 GB

RAM 6 GB

Supported Flash Memory Cards microSD

Cellular Technology 4G

Cellular Protocols GSM, TD-SCDMA, WCDMA, FDD LTE, TDD LTE, CDMA1X, EV-DO

Wireless Connectivity 802.11a/b/g/n/ac, NFC, RFID, Bluetooth 5.0 LE

Rear Camera 13 Megapixel focus: automatic

Front Camera 5 Megapixel

Navigation System A-GPS/GPS/GLONASS/Galileo

Barcode Reader Yes (2D imager / RFID)

Barcodes Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBN, QR code, MaxiCode, UPC-A, UPC-E, Codabar, Code 128, Code 11, Code 16K, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, ITF, Plessey, ISSN, Micro QR code, ITF-14, Standard 2 of 5, EAN-8, EAN-13, GS1-128, ITF-6, DotCode, RSS, Composite, AIM128, Aztec, Micropdf

RFID Specification 13.56 MHz, Mifare, Felica, ISO/IEC 15693, ISO 14443A, ISO 14443B, NFC Forum Type tags

Dimensions (WxDxH) 7.8 cm x 2 cm x 15.5 cm

Weight 265 g

Manufacturer Warranty 2-year warranty

General

Product Type Data collection terminal - rugged

Operating System Android 11 GMS

Display

Type 5" colour

Resolution 1280 x 720

Features Corning Gorilla glass, capacitive touch screen

Processor

Processor Clock Speed 2 GHz

Number of Cores 8-core

Memory

Storage 128 GB

RAM 6 GB

Supported Flash Memory Cards microSD

Max Supported Capacity 128 GB

Communications

Cellular Technology 4G

Cellular Protocols GSM, TD-SCDMA, WCDMA, FDD LTE, TDD LTE, CDMA1X, EV-DO

Wireless Connectivity 802.11a/b/g/n/ac, NFC, RFID, Bluetooth 5.0 LE

Rear Camera

Sensor Resolution 13 Megapixel

Focus Adjustment Automatic

Light Source LED flash

Front Camera

Sensor Resolution 5 Megapixel

Navigation System

Receiver A-GPS/GPS/GLONASS/Galileo

Multimedia

Audio Speaker

Input Device

Type Keypad

Keys Qty 10

Barcodes

Barcode Reader Yes

Scan Element Type 2D imager / RFID

Light Source Wave Length 650 nm

Barcodes Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBN, QR code, MaxiCode, UPC-A, UPC-E, Codabar, Code 128, Code 11, Code 16K, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, ITF, Plessey, ISSN, Micro QR code, ITF-14, Standard 2 of 5, EAN-8, EAN-13, GS1-128, ITF-6, DotCode, RSS, Composite, AIM128, Aztec, Micropdf

RFID

Frequency 13.56 MHz

RFID Specification Mifare, Felica, ISO/IEC 15693, ISO 14443A, ISO 14443B, NFC Forum Type tags

Software

Preloaded Software AirWatch, Stay-Linked Terminal Emulation, Ivanti Velocity, SOTI, Ndevor

Expansion and Connectivity

Expansion Slots 1 x SIM card ¦ 1 x Micro-SIM card ¦ 1 x microSD

Interfaces USB-C ¦ Headphones mini jack (3.5mm)

Power

Voltage Required (50 - 60 Hz)

Battery

Capacity 4500 mAh

Miscellaneous

Features ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), multi-colour LEDs, 1D/2D CMOS imager with laser aimer, 1.5 m drop resistant

Vibrating Alert Yes

Included Accessories Power adapter, additional battery, rubber boot, multiplug adapter

Cables Included USB-C cable

Compliant Standards IP65, AER

Dimensions & Weight

Width 7.8 cm

Depth 2 cm

Height 15.5 cm

Weight 265 g

Manufacturer Warranty

Service & Support Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature -20 °C

Max Operating Temperature 55 °C

Humidity Range Operating 5 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C
