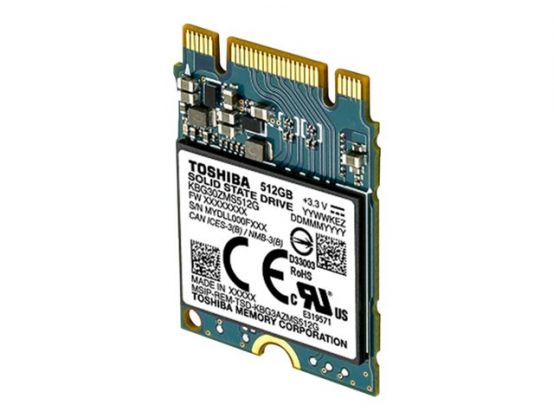

Toshiba BG3 Series KBG30ZMS512G - SSD - 512 GB - M.2 Card
Manufacture#: KBG30ZMS512G
Checking delivery…
Product details
SSD
512 GB
internal
M.2 2230
Payment options available at checkout
Main features
Toshiba BG3 Series KBG30ZMS512G
SSD
512 GB
internal
M.2 2230
M.2 Card
Overview
The BG3 series leverages 64-layer, 3-bit-per-cell (TLC) BiCS FLASH and features NVMe Revision 1.2.1. With Host Memory Buffer (HMB) technology, this SSD series retains high performance in a DRAM-less architecture, while enabling reduced power and a smaller footprint.¦BG3 SSDs, as an innovative, next-generation ball grid array (BGA) SSD product line, harness the flexibility in system design that enables mobile computing and IoT embedded devices to be smaller, lighter, faster, and more power efficient. Also, these power-saving BG3 SSDs offer data center applications an alternative solution for server boot storage.
Toshiba 64-layer BiCS FLASH
PCIe Gen3 NVMe
M.2 2230 single-sided form factor
Product Description
Toshiba BG3 Series KBG30ZMS512G - SSD - 512 GB - M.2 Card
Type
Solid state drive - internal
Capacity
512 GB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2230
Interface
M.2 Card
Features
64-layer 3D BiCS FLASH, Host Controlled Thermal Management (HCTM), Device Self-test, Host Memory Buffer (HMB)
Dimensions (WxDxH)
22 mm x 30 mm x 2.38 mm
Weight
2.6 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
512 GB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2230
Interface
M.2 Card
Features
64-layer 3D BiCS FLASH, Host Controlled Thermal Management (HCTM), Device Self-test, Host Memory Buffer (HMB)
Width
22 mm
Depth
30 mm
Height
2.38 mm
Weight
2.6 g
Performance
Internal Data Rate
1500 MBps (read) / 1000 MBps (write)
Reliability
MTBF
1,500,000 hours
Expansion & Connectivity
Interfaces
1 x M.2 Card - M.2 Card
Compatible Bay
M.2 2230
Power
Power Consumption
3.3 Watt (read) ¦ 3.2 Watt (write) ¦ 3.3 Watt (active)
Miscellaneous
Compliant Standards
ICES-003, EN55024, FCC Part 15 B, UL 60950-1, EN 60950-1, BSMI CNS 13438, CAN/CSA C22.2 No. 60950-1-07, KN32, KN35, EN 55032, AS/NZS CISPR 32
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
80 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Operating
8 - 90% (non-condensing)
Shock Tolerance (operating)
1500 g @ 0.5 ms half-sine wave
Shock Tolerance (non-operating)
1500 g @ 0.5 ms half-sine wave
Vibration Tolerance (operating)
20 g @ 10-2000 Hz
Vibration Tolerance (non-operating)
20 g @ 10-2000 Hz
